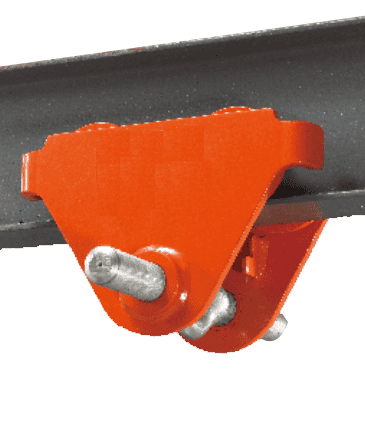

ATP Series Push Trolley – Reliable Manual Beam Trolley for Lifting Applications
The ATP Series Push Trolley is a high-performance manual trolley designed for smooth and efficient horizontal movement of loads along I-beams. It is widely used together with chain hoists or lifting equipment in industrial environments such as warehouses, workshops, and construction sites.
Technical Specifications
| Capacity | I-Beam Width (mm) | Test Load(T) | Weight(kg) |
|---|---|---|---|
| 0.5T | 50-220 | 0.75 | 7 |
| 1T | 64-220 | 1.5 | 10 |
| 2T | 88–220 | 3 | 15.5 |
| 3T | 102–220 | 4.5 | 26 |
| 5T | 114–220 | 7.5 | 38 |
Key Features
- Adjustable Beam Width
Easily adjustable to fit various I-beam sizes for versatile applications. - Smooth Rolling Wheels
Precision-machined wheels ensure low rolling resistance and stable operation. - Heavy-Duty Steel Construction
Made from high-strength steel for durability and long service life. - Easy Installation
Quick assembly with a simple structure, saving time on setup. - Safety & Stability
Equipped with anti-drop plates and a secure locking system.
Applications
The ATP Series Push Trolley is suitable for:
- Lifting and moving heavy loads on I-beams
- Workshops and manufacturing plants
- Warehouses and logistics centers
- Construction and installation projects
