G100 Lifting Chain EN818-2 Standard | High-Tensile Alloy Steel Chain

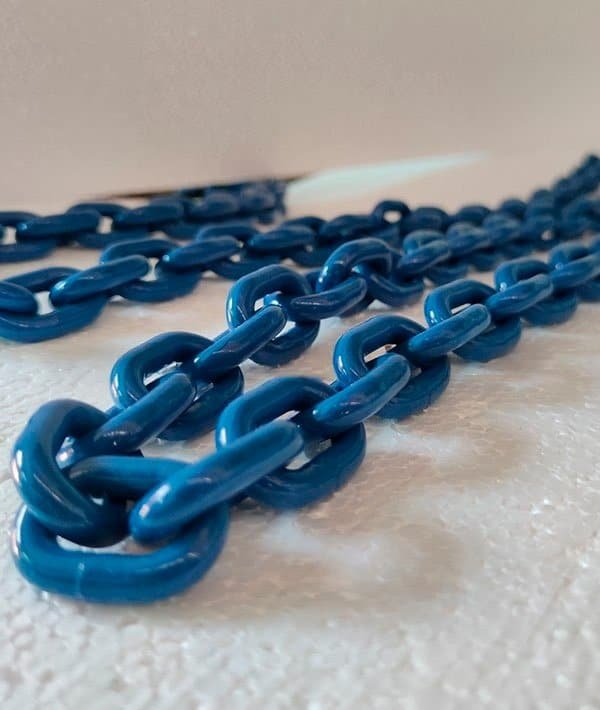

Our Grade 100 (G100) lifting chain represents the pinnacle of overhead lifting technology. Manufactured from high-performance alloy steel, it provides a 25% higher Working Load Limit (WLL) compared to standard G80 chains of the same diameter. This allows for lighter, more ergonomic chain sling assemblies without sacrificing safety.
G100 Alloy Steel Lifting Chain Specifications
Standard: EN 818-2 (Enhanced) | Safety Factor: 4:1 | Material: Alloy Steel
| Nominal Size (d) (mm) | Pitch (p) (mm) | Internal Width (w₁) min (mm) | External Width (w₂) max (mm) | WLL (tons) (G100) | Breaking Force (min) (kN) | Approx. Weight (kg/m) |
| 6 | 18 | 7.8 | 22.2 | 1.4 | 56.5 | 0.8 |
| 7 | 21 | 9.1 | 25.9 | 1.9 | 77.0 | 1.1 |
| 8 | 24 | 10.4 | 29.6 | 2.5 | 101 | 1.4 |
| 10 | 30 | 13.0 | 37.0 | 4.0 | 158 | 2.2 |
| 13 | 39 | 16.9 | 48.1 | 6.7 | 265 | 3.8 |
| 16 | 48 | 20.8 | 59.2 | 10.0 | 402 | 5.7 |
| 19 | 57 | 24.7 | 70.3 | 14.0 | 567 | 8.0 |
| 20 | 60 | 26.0 | 74.0 | 16.0 | 630 | 9.0 |
| 22 | 66 | 28.6 | 81.4 | 19.0 | 760 | 10.9 |
| 26 | 78 | 33.8 | 96.2 | 26.5 | 1060 | 15.2 |
| 32 | 96 | 41.6 | 118 | 40.0 | 1580 | 23.0 |
Standard finish: Violet/Blue powder coated for high visibility and corrosion resistance.
Technical Specifications
-
Manufacturing Standard: Strictly conforms to EN 818-2 (exceeding G80 mechanical properties).
-
Material: Specialized high-strength alloy steel, Quenched and Tempered.
-
Marking: Distinctly stamped with “G100” or “10” for rapid identification and compliance audits.
-
Proof Test: Individually proof tested to 2.5 times the WLL.
-
Elongation: Minimum breaking elongation of 20%.
Why Choose G100 Over G80?
-
Increased Capacity: Lift heavier loads using a smaller, lighter chain.
-
Enhanced Durability: Increased hardness and resistance to wear in extreme industrial environments.
-
Cost Efficiency: While the initial cost is higher, the reduced weight decreases operator fatigue and increases longevity.
-
High Visibility: Finished in a signature violet or blue powder coating for easy identification and corrosion protection.
