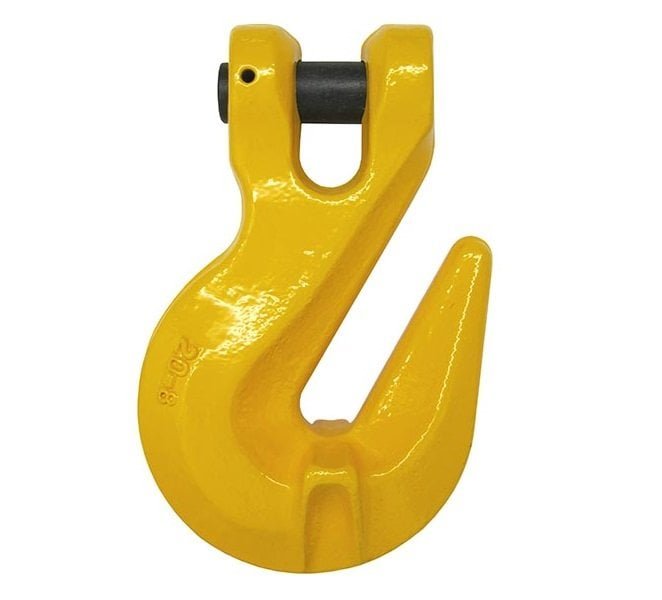

G80 Clevis Shortening Grab Hook | Grade 80 Alloy Steel Lifting Hook
The G80 Clevis Grab Hook is a versatile and essential component for chain slings, load binding, and transport securing. Designed with a clevis-type connection, it allows quick and secure attachment to Grade 80 chains without additional connectors.
Technical Specifications
| SIZE(MM) | WLL(T) | BL(T) | E | A | H | W | L | WEIGHT(KG) |
| 6-8 | 1.12 | 4.48 | 8.3 | 8 | 17.7 | 26.7 | 75 | 0.25 |
| 7/8-8 | 2 | 8 | 11 | 9.5 | 18.5 | 33.5 | 89 | 0.32 |
| 10-8 | 3.15 | 12.6 | 13 | 12.5 | 29 | 46 | 126 | 0.73 |
| 13-8 | 5.3 | 21.2 | 16.5 | 15 | 42.7 | 57.5 | 163.5 | 1.6 |
| 16-8 | 8 | 32 | 19 | 18.5 | 45 | 74 | 183.5 | 2.8 |
| 20-8 | 12.5 | 50 | 24 | 23 | 56 | 74 | 219 | 5 |
| 22-8 | 15 | 60 | 27 | 27 | 68.5 | 90 | 254 | 6.3 |
| 26-8 | 21.2 | 84.8 | 30 | 30 | 77 | 102 | 309 | 14.5 |
Features & Advantages
-
Superior Strength: Each hook is quenched and tempered to ensure high tensile strength and fatigue resistance.
-
Easy Attachment: The clevis (cradle) design allows for a direct and easy connection to the chain, ensuring the load remains centered.
-
Safety Guaranteed: 100% magnaflux crack detection and proof load tested to 2.5 times the Working Load Limit (WLL).
-
Wear Resistance: Advanced powder coating provides excellent protection against rust and harsh industrial environments.
Applications
Ideal for use in:
-
Overhead lifting and crane operations.
-
Mining and construction rigging.
-
Towing, logging, and oilfield transport.
-
Marine and port cargo handling.
