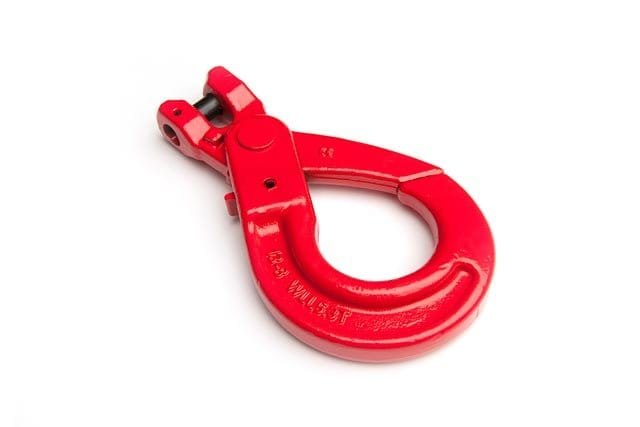

G80 Self-Locking Clevis Hook for Lifting & Rigging Applications
Key Features
-
Fail-Safe Locking: The latch stays locked until the release trigger at the back is manually pressed, preventing accidental load disengagement.
-
Clevis Efficiency: The clevis design provides a permanent, secure connection to the chain without the bulk of additional hardware.
-
Unmatched Durability: Quenched and tempered for superior impact toughness and long-service life in industrial environments.
-
Clear Identification: Embossed with Grade (G80), Manufacturer Mark, and Traceability Code for easy safety compliance and auditing.
-
Large Throat Opening: Designed with a wide opening to accommodate various lifting points and wire rope thimbles.
Technical Specifications
| SIZE(MM) | WLL(T) | BL(T) | A | B | E | E1 | L1 | L | WEIGHT(KG) |
| 6-8 | 1.12 | 4.48 | 8 | 32 | 35 | 28 | 96 | 96 | 0.44 |
| 7/8-8 | 2 | 8 | 9.5 | 38.5 | 40 | 35.8 | 119.3 | 161.8 | 0.8 |
| 10-8 | 3.15 | 12.6 | 12 | 46 | 50 | 45 | 142 | 195 | 1.38 |
| 13-8 | 5.3 | 21.2 | 15 | 59 | 60 | 52.5 | 179 | 249 | 2.81 |
| 16-8 | 8 | 32 | 18.5 | 77 | 65 | 63.3 | 224.8 | 310 | 6 |
| 18/20-8 | 12.5 | 50 | 25 | 77 | 80 | 86 | 238.3 | 335 | 7.25 |
| 22-8 | 15 | 60 | 25 | 97.5 | 83 | 76 | 277 | 392 | 12.8 |
| 26-8 | 21.2 | 84.8 | 30 | 118 | 106 | 96 | 321 | 450 | 21.8 |
| 32-8 | 31.5 | 126 | 35 | 150 | 140 | 135 | 416 | 589.6 | 49.6 |
Applications
-
Overhead Lifting Slings: The primary safety component for single and multi-leg G80 chain slings.
-
Mining & Heavy Construction: Used where frequent movement and vibrations require a hook that cannot accidentally open.
-
Oil & Gas: Reliable rigging for offshore environments where safety standards are non-negotiable.
-
Steel Manufacturing: Handling heavy beams and coils where precision and secure latching are critical.
