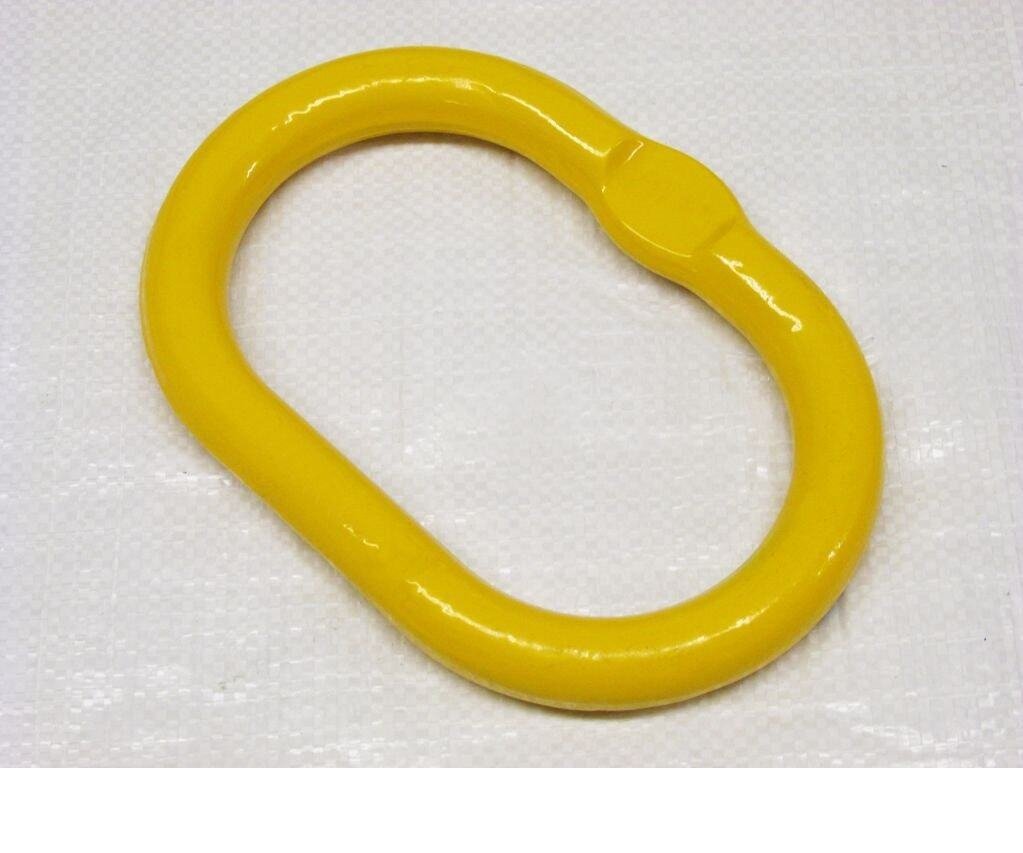

Grade 80 European Master Link| Grade 80 Alloy Steel Lifting Ring for Chain Sling
Our G80 European Type Master Links are designed for high-performance overhead lifting applications. Manufactured from superior-grade alloy steel and strictly adhering to EN1677-4 standards, these links serve as the primary connection point in single or multi-leg chain slings and wire rope assemblies.
Technical Specifications
| Size | G80 CHAIN SIZE | WEIGHT | WLL | DIMENSION(MM) | |||
| mm | 1 LEG SLING | 2 LEGS SLING | KG | T | P | L | D |
| 76-8 | 7 | 6 | 0.34 | 1.6 | 110 | 60 | 13 |
| 87-8 | 8 | 7 | 0.54 | 2.12 | 110 | 60 | 16 |
| 108-8 | 10 | 8 | 0.82 | 3.15 | 135 | 75 | 18 |
| 1310-8 | 13 | 10 | 1.5 | 5.3 | 160 | 90 | 22 |
| 1613-8 | 16 | 13 | 2.3 | 8 | 180 | 100 | 26 |
| 1816-8 | 18 | 16 | 3.95 | 11.2 | 200 | 110 | 32 |
| 2018-8 | 20 | 18 | 6.34 | 14 | 260 | 140 | 36 |
| 2220-8 | 22 | 20 | 8.96 | 17 | 300 | 160 | 40 |
| 2622-8 | 26 | 22 | 12.8 | 21.2 | 340 | 180 | 45 |
| 3226-8 | 32 | 26 | 16.55 | 31.5 | 350 | 190 | 50 |
| 3632-8 | 36 | 32 | 23.28 | 45 | 400 | 200 | 56 |
| 4036-8 | 40 | 36 | 32 | 56 | 430 | 220 | 63 |
Warning: Never exceed the rated Working Load Limit (WLL). Inspect for any signs of deformation, nicks, or cracks before every use. Do not repair by welding.
Key Features
-
Material: High-grade 20CrNiMo alloy steel, quenched and tempered.
-
Safety Factor: 4:1 (Minimum Breaking Load is 4 times the Working Load Limit).
-
Standard Compliance: Fully compliant with EN1677-4, DIN 5688, and AS3775.1.
-
Surface Treatment: Durable powder coating (Standard colors: Yellow/Red) for superior corrosion resistance.
-
Rigorous Testing: * 100% Magnaflux crack detection.
-
Proof load tested at 2.5 X WLL
-
Fatigue tested at 1.5 X WLL for 20,000 cycles.
-
