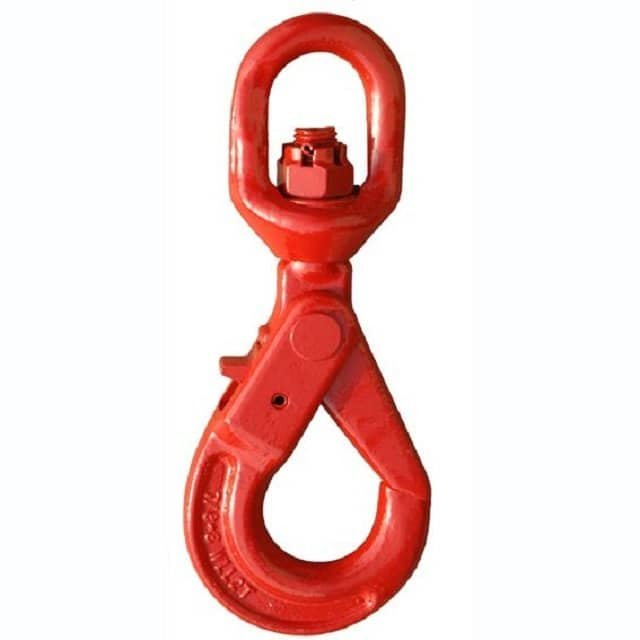

G80 Rotating Self-Locking Hook for Chain Sling & Rigging Applications
The G80 swivel self-locking hook is a premium lifting component designed for maximum safety and flexibility in lifting operations. Featuring a 360° swivel mechanism, the hook can rotate under load, effectively reducing chain twisting and improving handling efficiency.
Its automatic self-locking system ensures that the latch closes securely under load, minimizing the risk of accidental disengagement.
Technical Specifications
- Material: Alloy Steel (Grade 80)
- Safety Factor: 4:1
- Surface: Powder Coated / Painted
- Rotation: 360° swivel
- Standard: EN1677 / EN818 compliant
- Lock Type: Automatic self-locking
| SIZE(MM) | WLL(T) | BL(T) | B | C | D | L | T | E | WEIGHT(KG) |
| 6-8 | 1.12 | 4.48 | 32.5 | 22 | 11.25 | 170 | 34 | 29 | 0.71 |
| 7/8-8 | 2 | 8 | 35.5 | 26 | 12.5 | 210 | 46 | 34 | 1.1 |
| 10-8 | 3.15 | 12.6 | 42 | 34 | 15 | 247 | 56 | 44 | 2 |
| 13-8 | 5.3 | 21.2 | 50 | 38.5 | 16 | 302 | 69 | 52 | 4 |
| 16-8 | 8 | 32 | 61 | 55 | 21.5 | 383 | 86 | 60 | 7.3 |
| 18/20-8 | 12.5 | 50 | 72 | 61 | 26 | 418 | 100 | 83 | 11.6 |
| 22-8 | 15 | 60 | 95 | 95 | 33 | 527 | 98 | 88 | 16 |
| 26-8 | 21.2 | 84.8 | 122 | 115 | 42 | 610 | 110 | 95.5 | 21.5 |
| 32-8 | 31.5 | 126 | 140 | 126 | 52 | 777 | 166 | 150 | 79 |
Key Features
- Self-Locking Mechanism – Automatically locks when under load
- 360° Swivel Design – Prevents chain twisting and improves flexibility
- Grade 80 Alloy Steel – High strength and durability
- Forged & Heat Treated – Enhanced safety and long service life
- High Safety Performance – Ideal for critical lifting operations
