GCT Push Trolley – Durable & Easy-to-Use Beam Trolley

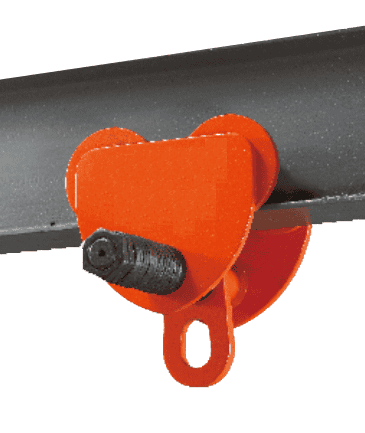

The GCT Push Trolley is a manual beam trolley designed for transporting loads horizontally along I-beams with minimal effort. It is commonly used with chain hoists or lifting equipment in industrial and construction environments.
With its simple push operation, the GCT trolley allows operators to move loads efficiently without the need for a hand chain mechanism.
Technical Specifications
| Capacity | I-Beam Width (mm) | Test Load(T) | Weight(kg) |
| 0.5T | 75-125 | 0.75 | 5.5 |
| 1T | 75-125 | 1.5 | 8 |
| 2T | 100-150 | 3 | 13 |
| 3T | 100-150 | 4.5 | 18 |
| 5T | 125-175 | 7.5 | 31 |
| 10T | 125-180 | 15 | 76 |
Common Applications
-
Material Handling: Moving heavy crates and components in manufacturing plants.
-
Maintenance Work: Providing a mobile lifting point for engine repair or machine servicing.
-
Logistics & Warehousing: Efficiently navigating cargo along a monorail system.
What beam types are compatible with GCT trolleys?
GCT trolleys are adjustable and compatible with standard I-beams, wide-flange H-beams, and even curved tracks.
