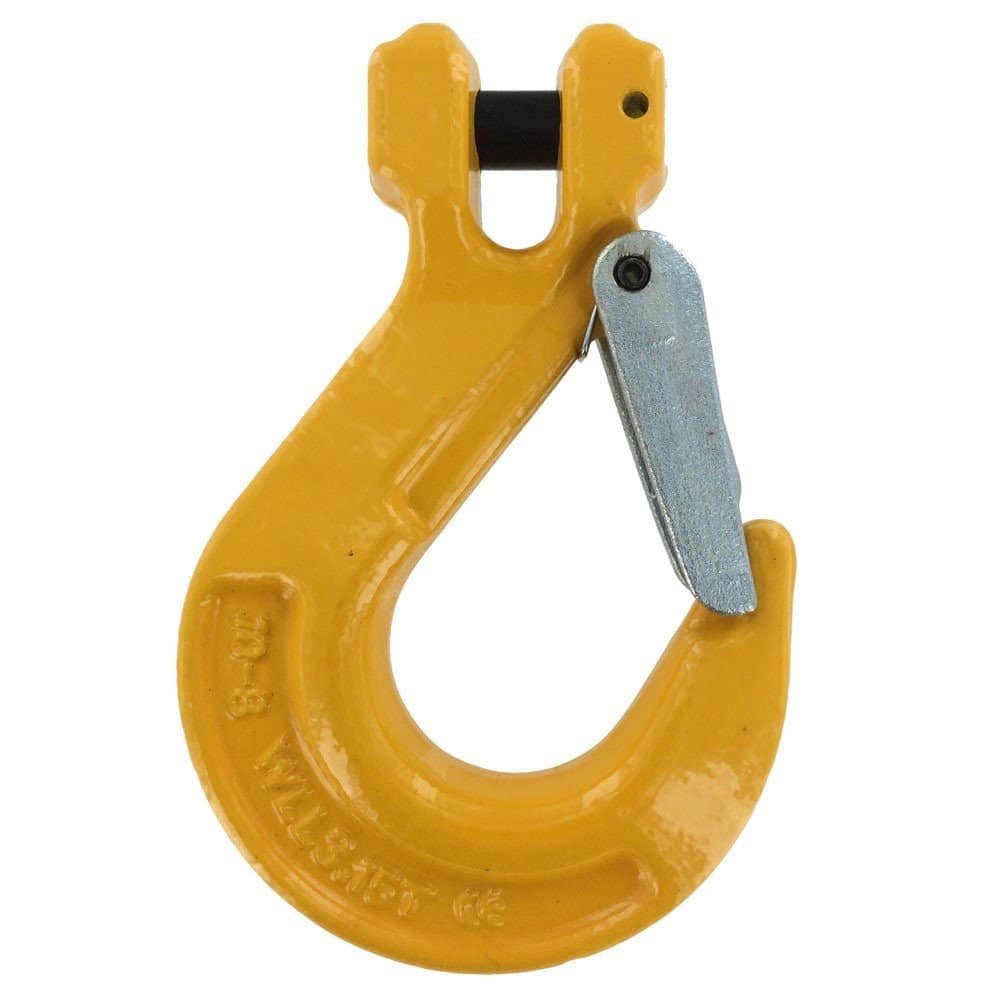

Forged G80 Clevis Sling Hook with Safety Latch | Alloy Steel Lifting Hook for Chain Slings
Our G80 Clevis Sling Hooks are the preferred choice for professional rigging and lifting, designed for a direct and secure connection to Grade 80 alloy chains. By eliminating the need for a separate coupling link, the clevis design provides a more streamlined and cost-effective assembly. Each hook features a heavy-duty spring-loaded safety latch to ensure the load remains engaged during the most demanding lifts.
Technical Specifications
- Material: Alloy Steel (Grade 80)
- Safety Factor: 4:1
- Surface Treatment: Powder Coated / Painted
- Standard: EN1677 compliant
- Connection Type: Clevis (direct chain connection)
| SIZE(MM) | WLL(T) | BL(T) | A | B | D | H | L | E | WEIGHT(KG) |
| 6-8 | 1.12 | 4.48 | 8 | 32 | 35 | 23 | 76 | 26 | 0.32 |
| 7/8-8 | 2 | 8 | 9.5 | 37 | 37 | 32.5 | 85.5 | 29 | 0.48 |
| 10-8 | 3.2 | 12.6 | 13 | 49 | 46 | 35 | 104 | 39 | 0.95 |
| 13-8 | 5.3 | 21.2 | 16.5 | 56.5 | 56 | 42.5 | 128 | 47 | 1.8 |
| 16-8 | 8 | 32 | 21.2 | 70.5 | 60 | 54 | 150 | 55 | 3.4 |
| 20-8 | 12.5 | 50 | 24 | 77 | 79 | 58 | 180 | 61 | 6 |
| 22-8 | 15 | 60 | 27 | 91 | 101 | 62 | 213 | 72 | 10.4 |
| 26-8 | 21.2 | 84.8 | 30 | 117 | 115 | 75 | 250 | 85 | 14.5 |
| 32-8 | 31.5 | 126 | 35 | 150 | 140 | 88 | 317 | 106 | 27 |
Clevis Hook vs Eye Hook
Compared to eye hooks, clevis sling hooks allow:
- Direct chain connection without the master link
- Faster assembly and disassembly
- Better flexibility in sling configuration
Ideal for users who frequently adjust chain sling setups.
