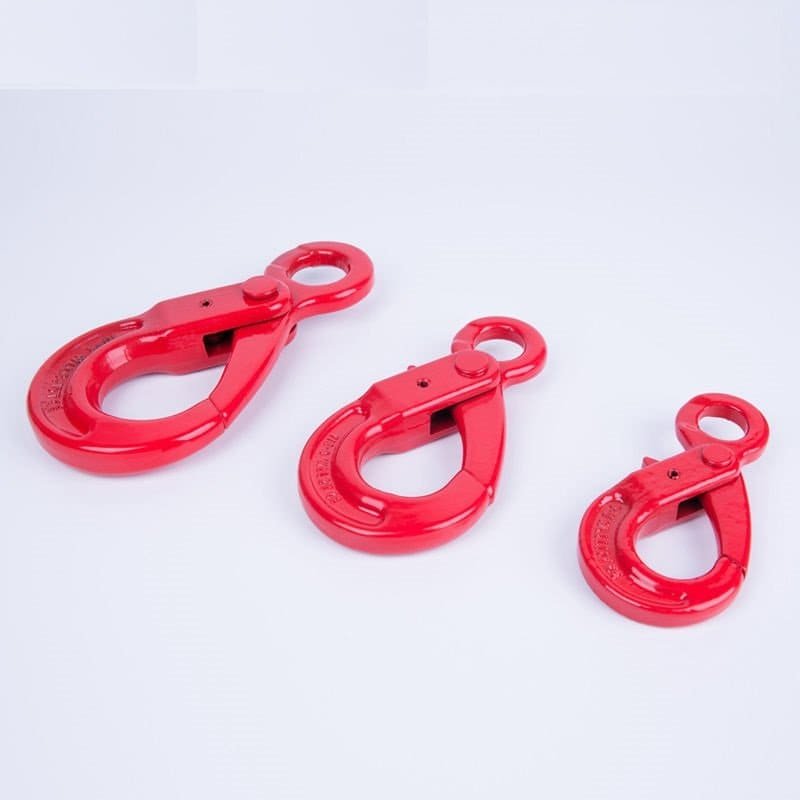

G80 Eye Self-Locking Hook | Grade 80 Safety Lifting Hook with Automatic Locking Latch
Our G80 Eye Self-Locking Hooks are engineered for critical lifting operations where safety and load security are paramount. Featuring an automatic trigger-activated locking mechanism, the hook closes and locks the moment the load is applied, preventing any chance of accidental release. The “Eye” design provides a universal connection point, making it compatible with a wide range of rigging hardware, including chain coupling links and shackles.
Technical Specifications
| SIZE(MM) | WLL(T) | BL(T) | M | R1 | D | R | H | E | WEIGHT(KG) |
| 6-8 | 1.12 | 4.48 | 22 | 34 | 10 | 110.5 | 19.5 | 28 | 0.5 |
| 7/8-8 | 2 | 8 | 25 | 46 | 12 | 136 | 24 | 34 | 0.8 |
| 10-8 | 3.15 | 12.6 | 32 | 56 | 15 | 171 | 30 | 44 | 1.43 |
| 13-8 | 5.3 | 21.2 | 40.5 | 69 | 19.5 | 208.5 | 40 | 52 | 2.86 |
| 16-8 | 8 | 32 | 56 | 86 | 22 | 257.5 | 50.5 | 60 | 5.64 |
| 18/20-8 | 12.5 | 50 | 64.5 | 100 | 27 | 275 | 55 | 81 | 7.6 |
| 22-8 | 15 | 60 | 70 | 98 | 30 | 320 | 67 | 82 | 13 |
| 26-8 | 21.2 | 84.8 | 80 | 110 | 34 | 363 | 75 | 110 | 18 |
| 32-8 | 31.5 | 126 | 105 | 166 | 45 | 472 | 97 | 168 | 44.5 |
Applications
-
Industrial Construction: Safe hoisting of steel structures, precast concrete, and heavy machinery.
-
Mining & Off-Shore: Reliable operation in harsh environments where load shifting could be disastrous.
-
Logistics & Warehousing: Ideal for overhead cranes and heavy-duty cargo handling.
-
Emergency Recovery: Secure connection point for heavy-load towing and recovery vehicle winches.
