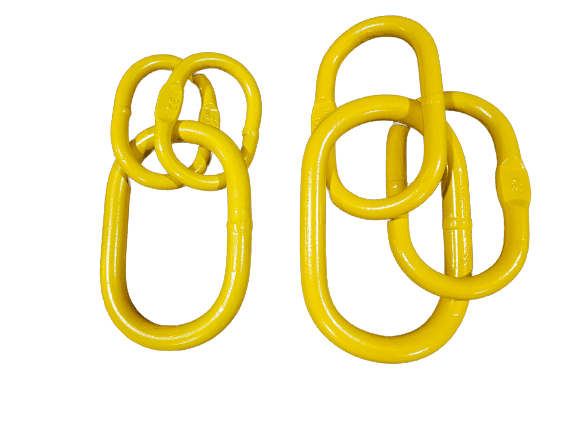

Grade 80 European Type Multi-Leg Master Link Assembly
The G80 Master Link Assembly is the essential head-link for constructing 3-leg and 4-leg chain slings. Designed with a large master link and two smaller sub-links, it ensures balanced load distribution and prevents overcrowding of chain connectors. Engineered from high-strength alloy steel, it meets the rigorous demands of industrial lifting and rigging.
Technical Specifications
| G80 EN818-2 CHAIN SIZE | Weight | WLL | DIMENSION(mm) | ||||||
| KG | T | A | B | D | a | b | d | ||
| 6 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | |
| 7 | 1.24 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | |
| 8 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | |
| 10 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | |
| 13 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | |
| 16 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | |
| 18 | 19.8 | 21.2 | 340 | 180 | 45 | 180 | 100 | 32 | |
| 20 | 22.6 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 | |
| 22 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 | |
| 26 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 | |
| 28 | 47 | 50 | 430 | 220 | 63 | 180 | 100 | 45 | |
| 32 | 66.46 | 63 | 460 | 250 | 72 | 200 | 110 | 50 | |
Warning: Ensure the master link assembly is compatible with the hook size of your crane. Never exceed the rated WLL. Inspect sub-links for twists or deformation before every lift.
Key Features
-
Configuration: Consists of 1 Main Link and 2 Sub-links (Triple Link Assembly).
-
Material: Forged from superior alloy steel, quenched and tempered for maximum toughness.
-
Safety Factor: 4:1 (Standard for European Lifting Operations).
-
Compliance: Fully compliant with EN1677-4 and AS3775.1 standards.
-
Surface Finish: High-visibility powder coating (Yellow/Red) for easy inspection and corrosion protection.
Applications
-
Multi-Leg Assemblies: Primary head-link for 3-leg and 4-leg G80 chain slings.
-
Marine & Industrial: Heavy-duty rigging in ports, oil rigs, and construction sites.
-
Lifting Beams: Connection point for spreader beams and heavy machinery hoisting.
