MG Geared Beam Trolley for Chain Hoist | Adjustable I-Beam Trolley Supplier

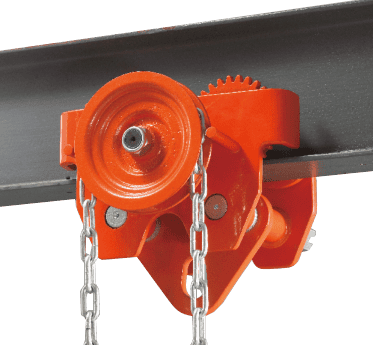

The MG Series Geared Trolley is a manual chain-driven beam trolley designed for accurate and controlled horizontal movement of loads along I-beams. Compared with push trolleys, it provides better positioning control, making it ideal for heavier loads and precision lifting operations.
Technical Specifications
| Model | Capacity (Ton) | Test Load(Ton) | I-Beam width(mm) | I-Beam Width (mm) |
| MG-05 | 0.5 | 0.75 | 50-152 | 50-203 |
| MG-10 | 1 | 1.5 | 64-203 | 64-305 |
| MG-20 | 2 | 3 | 88-203 | 88-305 |
| MG-30 | 3 | 4.5 | 100-203 | 100-305 |
| MG-50 | 5 | 7.5 | 114-203 | 114-305 |
| MG-100 | 10 | 15 | 124-203 | 124-305 |
| MG-200 | 20 | 30 | 136-203 | 136-305 |
Why MG Series?
-
Precision Control: Unlike push trolleys, the geared mechanism provides controlled movement, making it ideal for fragile loads or exact positioning tasks.
-
Ergonomic Operation: The high-efficiency gearing reduces the pulling force required, minimizing operator fatigue during long shifts.
-
Universal Compatibility: Designed with a wide adjustment range to fit various I-beam and H-beam flange widths (standard and wide-flange).
-
Built-In Safety: Features integrated drop-stop lugs and bumper guards to prevent derailment and protect wheels from impact.
What is the difference between a push trolley and a geared trolley?
A push trolley is moved by pushing the load, while a geared trolley uses a hand chain for more precise, controlled movement, especially useful for higher beams.
