Industrial HSZ-C Chain Pulley Block – Portable Heavy Duty Lifting Tool

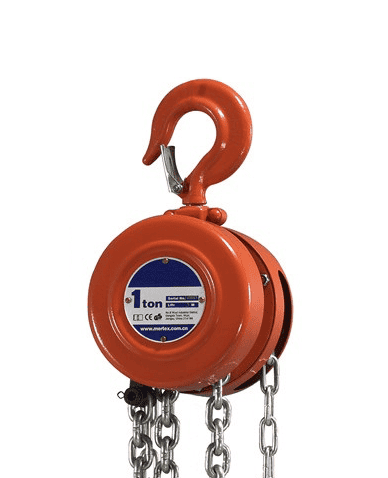

The HSZ-C round type manual chain hoist is designed with a compact circular gear housing, making it ideal for use in confined spaces and demanding lifting environments. Compared to traditional models, its streamlined round structure improves durability and internal gear protection.
Technical Specifications
| Model | Capacity (T) | Lifting Height (m) | Load Chain Dia (mm) | Chain Falls | Test Load (T) | Effort Required (N) |
| HSZ-C 0.5T | 0.5 | 2.5 | 6 | 1 | 0.75 | 262 |
| HSZ-C 1T | 1 | 2.5 | 6 | 1 | 1.5 | 314 |
| HSZ-C 1.5T | 1.5 | 2.5 | 8 | 1 | 2.25 | 343 |
| HSZ-C 2T | 2 | 2.5 | 6 | 2 | 3 | 318 |
| HSZ-C 3T | 3 | 3 | 8 | 2 | 4.5 | 347 |
| HSZ-C 5T | 5 | 3 | 10 | 2 | 7.5 | 382 |
| HSZ-C 10T | 10 | 3 | 10 | 4 | 12.5 | 390 |
| HSZ-C 20T | 20 | 3 | 10 | 8 | 25 | 390 |
| HSZ-C 30T | 30 | 3 | 10 | 10 | 37.5 | 394 |
Custom lifting height and load chain length available upon request.
Applications
The HSZ-C round type chain hoist is especially suitable for:
- Confined or narrow working spaces
- Machinery installation
- Construction and engineering projects
- Warehousing and cargo handling
- Shipbuilding and offshore operations
