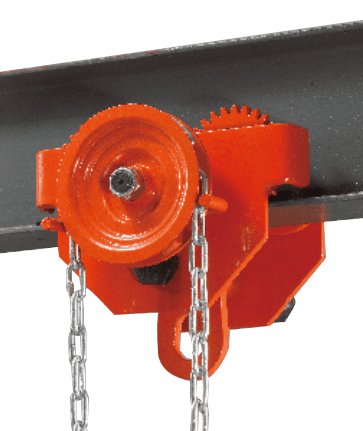

TG Series Geared Trolley | 0.5t-50t Manual Beam Trolley
The TG Series Geared Trolley is the ideal choice for heavy industrial lifting where precise movement and controlled travel are essential. Designed to be operated by a hand chain, this geared monorail trolley allows for effortless positioning of heavy loads along various beam profiles, even at high installation heights.
Technical Specifications
| Capacity (Ton) | I-beam Width (mm) | Test Load (Ton) | Weight (kg) |
| 0.5T | 64-110 | 0.75 | 9.5 |
| 1T | 54-152 | 1.5 | 12 |
| 2T | 76-165 | 3 | 16.5 |
| 3T | 76-203 | 4.5 | 25 |
| 5T | 88-203 | 7.5 | 38 |
| 10T | 122-203 | 15 | 93 |
| 20T | 122-203 | 30 | 215 |
| 30T | 122-300 | 45 | 230 |
| 50T | 122-300 | 75 | 610 |
Core Features
-
Effortless Movement: The precision-machined gear system significantly reduces the hand-pull force required, making it easy to move loads up to 50 tons.
-
Superior Stability: Dual-axis design and premium sealed ball bearings ensure the trolley remains centered and moves smoothly without jerking.
-
Adaptable Flange Width: Easily adjustable via a series of spacers to fit a wide range of I-Beams, H-Beams, and Universal Beams.
-
Enhanced Safety Features: Equipped with anti-drop plates and built-in bumper guards to prevent derailment and protect the unit from impact damage.
-
Long-Life Hand Chain: Standard galvanized hand chain offers excellent corrosion resistance for outdoor or harsh factory environments.
Push Trolley vs Geared Trolley
| Feature | Push Trolley | Geared Trolley |
|---|---|---|
| Operation | Manual Push | Hand Chain Driven |
| Precision | Low | High |
| Heavy Load Use | Limited | Excellent |
| Control | Basic | Precise |
| Best For | Light duty | Heavy & precise work |
