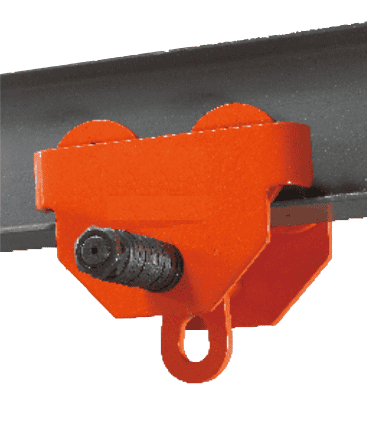

TP Series Industrial Push Beam Trolley – Compact Plain Crawler for Hoists
The TP Series Push Trolley (also known as a plain trolley) offers a cost-effective and reliable solution for moving heavy loads along a monorail beam. Designed for simplicity and durability, it is the perfect companion for manual or electric chain hoists in workshops, garages, and light industrial settings.
Technical Specifications
| Capacity (Ton) | I-beam Width (mm) | Test Load (Ton) | Weight (kg) |
|---|---|---|---|
| 0.5T | 64-110 | 0.75 | 5.5 |
| 1T | 54-152 | 1.5 | 9 |
| 2T | 76-165 | 3 | 13 |
| 3T | 76-203 | 4.5 | 22 |
| 5T | 88-203 | 7.5 | 36 |
| 10T | 122-203 | 15 | 83 |
Key Advantages
-
Universal Beam Fit: The TP series comes with a wide range of spacers, allowing for quick adjustment to fit various I-beam, H-beam, and curved track widths.
-
Maintenance-Free Wheels: Precision-machined wheels are equipped with high-quality sealed ball bearings, ensuring smooth travel and eliminating the need for frequent lubrication.
-
Compact & Lightweight: The streamlined design of the TP series makes it easier to install in tight spaces without compromising on load-bearing integrity.
-
Safety Secondary Support: Integrated drop-stop lugs serve as a safety backup, preventing the trolley from falling even if the wheels are damaged.
Applications
-
Workshop Maintenance: Perfect for stationary lifting points or moving tools across a workbench.
-
Warehouse Logistics: Ideal for light to medium-duty material handling.
-
Automotive Repair: Used extensively in engine pulling and heavy component positioning.
