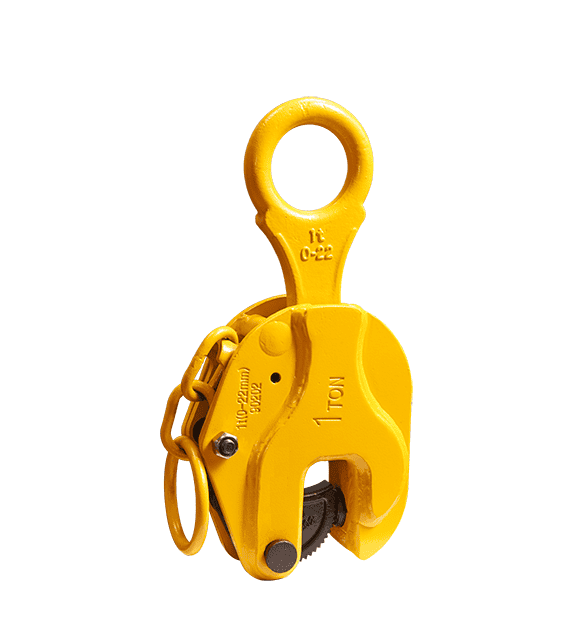

CDH Type Vertical Plate Lifting Clamp | Heavy Duty Forged Steel Clamps
Featuring an automatic safety locking mechanism, the clamp securely grips the load during lifting while preventing accidental slipping.
Manufactured from high-strength forged alloy steel, CDH clamps are widely used in fabrication workshops, shipyards, steel warehouses, construction sites, and industrial lifting applications.
This clamp is intended for single plate lifting only.
Specifications
| SIZE(T) | JAW OPENING(MM) | LOAD CAPACITY(KG) | T | U | V | L | WEIGHT(KG) |
| 0.8 | 0-16 | 800 | 123 | 265 | 40 | 44 | 2.8 |
| 1 | 0-22 | 1000 | 124 | 295 | 50 | 54 | 3.6 |
| 2 | 0-30 | 2000 | 154 | 385 | 54 | 56 | 5.5 |
| 3 | 0-40 | 3200 | 180 | 400 | 60 | 72 | 10 |
| 5 | 0-50 | 5000 | 222 | 483 | 68 | 76 | 17 |
| 8 | 0-60 | 8000 | 265 | 535 | 65 | 90 | 26 |
| 10 | 0-90 | 10000 | 290 | 600 | 80 | 95 | 32 |
| 12 | 25-90 | 12000 | 408 | 700 | 80 | 113 | 48 |
| 16 | 60-125 | 16000 | 465 | 780 | 100 | 121 | 80 |
| 20 | 0-90 | 20000 | 563 | 933 | 100 | 140 | 149 |
| 30 | 10-90 | 30000 | 568 | 918 | 100 | 142 | 155 |
Standard CDH clamps are calibrated for steel plates with a surface hardness below HRC 30/Brinell 300.
Applications
Suitable for:
- Vertical steel plate lifting
- Plate turning operations
- Steel fabrication workshops
- Warehouse material handling
- Shipbuilding
- Construction projects
- Sheet metal transportation
