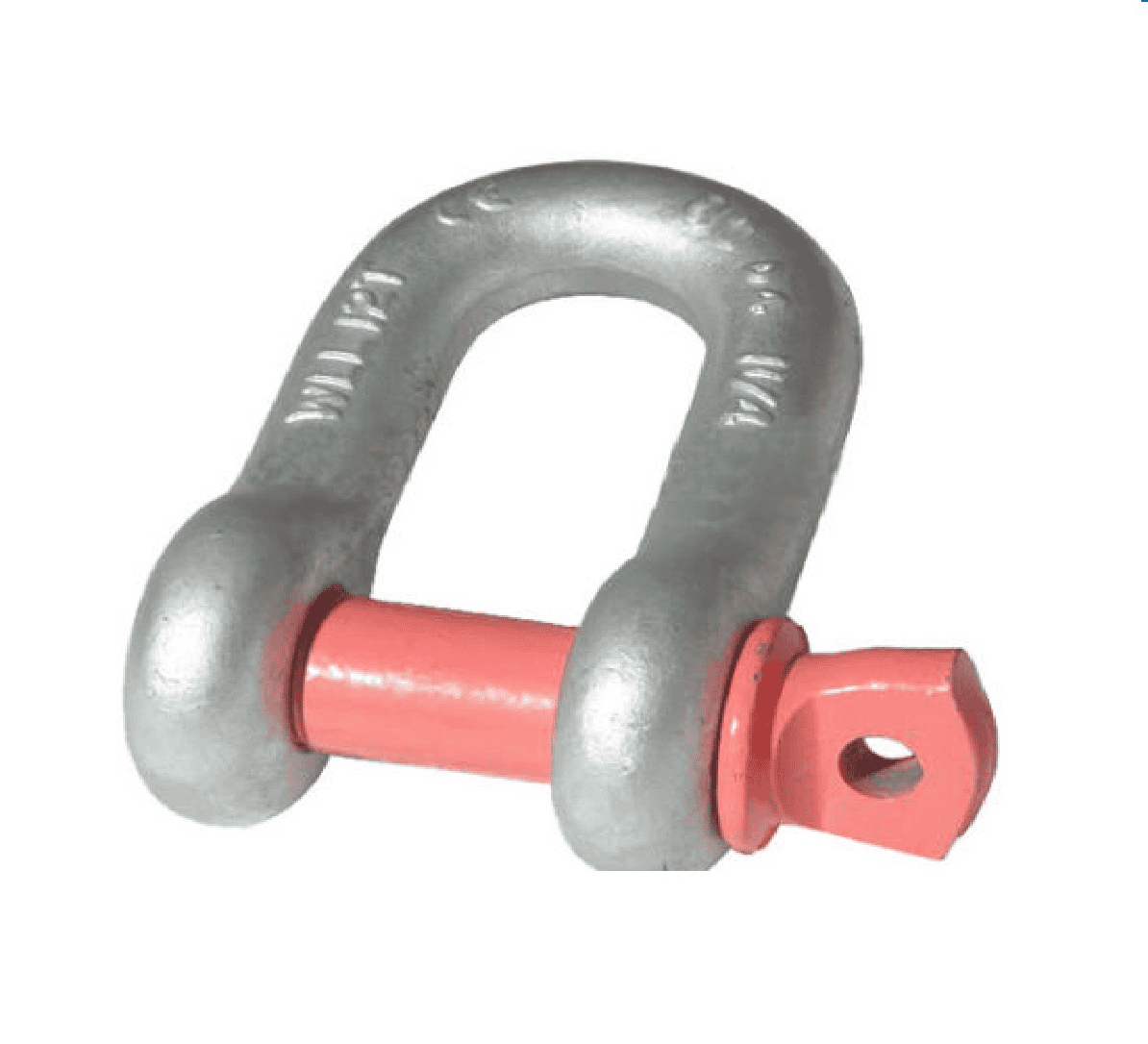

G210 US Type Dee Shackle with Screw Pin | Forged Chain Shackle for Lifting & Rigging
The G210 US Type Dee Shackle, also known as a chain shackle, is specifically designed for straight-line loading applications. Compared to anchor shackles, its narrow “D” shape provides higher efficiency when used in direct tension systems.
Key Specifications
-
Model: G210 (Screw Pin Dee Shackle / D-Shackle)
-
Compliance: Manufactured to meet Federal Specification RR-C-271.
-
Material: High-tensile carbon steel body with alloy steel pin.
-
Working Load Limit (WLL): 0.33 Ton to 55 Tons.
-
Surface Treatment: Hot Dipped Galvanized (HDG) for maximum rust resistance, or Electric Galvanized.
-
Safety Factor: 4:1 or 6:1.
-
Processing: Drop Forged, Quenched & Tempered.
| Size | WLL | A | B | C | D | E | F | G | H | I | M | Weight |
| (in) | (T) | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 1/4 | 0.5 | 11.9 | 7.85 | 6.35 | 6.35 | 24.6 | 15.5 | 22.4 | 40.4 | 4.85 | 35.1 | 0.04 |
| 5/16 | 0.75 | 13.5 | 9.65 | 7.85 | 7.85 | 29.5 | 19.1 | 26.2 | 48.5 | 5.6 | 42.2 | 0.75 |
| 3/8 | 1 | 16.8 | 11.2 | 9.65 | 9.65 | 35.8 | 23.1 | 31.8 | 58.5 | 6.35 | 51.5 | 0.12 |
| 7/16 | 1.5 | 19.1 | 12.7 | 11.2 | 11.2 | 41.4 | 26.9 | 36.6 | 67.5 | 7.85 | 60.5 | 0.18 |
| 1/2 | 2 | 20.6 | 16 | 12.7 | 12.7 | 46 | 30.2 | 41.4 | 77 | 9.65 | 68.5 | 0.29 |
| 5/8 | 3.25 | 26.9 | 19.1 | 15.7 | 16 | 58.5 | 38.1 | 51 | 95.5 | 11.2 | 85 | 0.57 |
| 3/4 | 4.75 | 31.8 | 22.4 | 20.6 | 19.1 | 70 | 46 | 60.5 | 115 | 12.7 | 101 | 0.96 |
| 7/8 | 6.5 | 36.6 | 25.4 | 24.6 | 22.4 | 81 | 53 | 71.5 | 135 | 12.7 | 114 | 1.5 |
| 1 | 8.5 | 42.9 | 28.7 | 25.4 | 25.4 | 93.5 | 60.5 | 81 | 151 | 14.2 | 129 | 2.15 |
| 1-1/8 | 9.5 | 46 | 31.8 | 31.8 | 28.7 | 103 | 68.5 | 91 | 172 | 16 | 142 | 2.95 |
| 1-1/4 | 12 | 51.5 | 35.1 | 35.1 | 31.8 | 115 | 76 | 100 | 191 | 17.5 | 156 | 4.08 |
| 1-3/8 | 13.5 | 57 | 38.1 | 38.1 | 35.1 | 127 | 84 | 111 | 210 | 19.1 | 174 | 5.45 |
| 1-1/2 | 17 | 60.5 | 41.4 | 41.1 | 38.1 | 137 | 92 | 122 | 230 | 20.6 | 187 | 7.35 |
| 1-3/4 | 25 | 73 | 51 | 54 | 44.5 | 162 | 106 | 146 | 279 | 25.4 | 231 | 13.2 |
| 2 | 35 | 82.5 | 57 | 51 | 51 | 184 | 122 | 172 | 312 | 31 | 263 | 19.6 |
| 2-1/2 | 55 | 105 | 70 | 66.5 | 66.5 | 238 | 145 | 203 | 377 | 35.1 | 330 | 32.5 |
Why Use G210 Dee Shackles?
-
Superior Straight-Line Strength: The narrow profile is specifically engineered for in-line tension, reducing side-loading risks.
-
Premium Galvanization: Our heavy-duty zinc coating provides a protective barrier against salt water, moisture, and acidic environments.
-
Permanent Markings: Size, WLL, and batch codes are embossed on every shackle for job-site safety compliance and traceability.
-
Fast Connection: The screw pin allows for efficient installation—perfect for rigging applications where frequent connection/disconnection is necessary.
