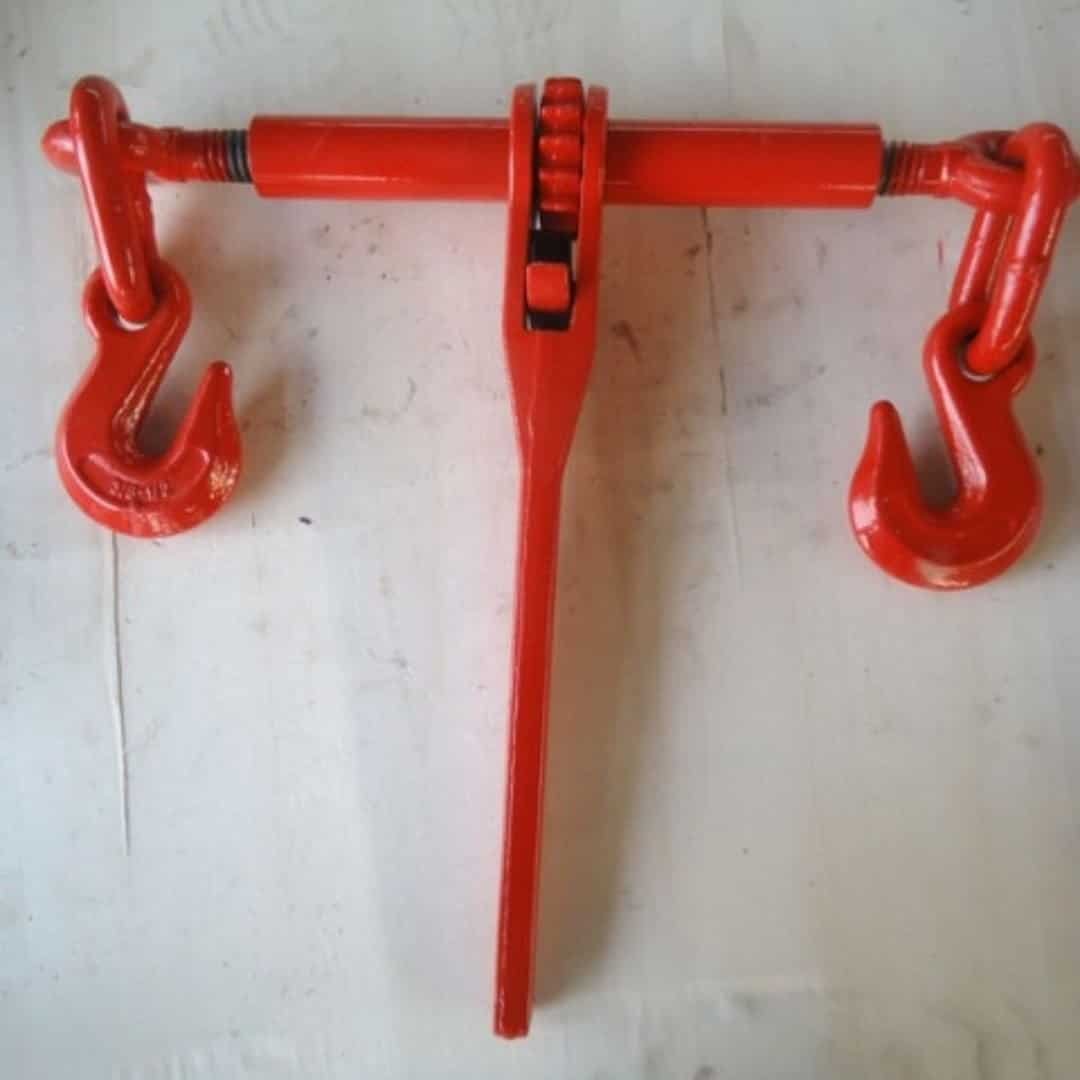

G70 Ratchet Load Binder US Type for Chain Tie Down | Heavy Duty Cargo Lashing Binder
The G70 ratchet load binder is specifically designed for cargo securing and transport applications, providing a safer and more controlled alternative to lever binders. Built for use with Grade 70 transport chains, it is widely used in trucking, logistics, and flatbed cargo lashing.
Unlike lever binders, the ratchet mechanism allows gradual tensioning, reducing the risk of sudden release and improving operator safety.
Technical Specifications
| Size | WLL | Proof Load | MBS | N.W. | |
| (in) | (lbs) | (lbs) | (lbs) | (lbs) | |
| 1/4-5/16 | 2200 | 4400 | 7800 | 3.75 | |
| 5/16-3/8 | 5400 | 10800 | 19000 | 10.5 | |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12.9 | |
| 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | |
Applications
-
Heavy Equipment Transport: Securing excavators, tractors, or industrial machinery.
-
Logistics & Trucking: Standard tie-down tool for flatbed trailers and freight carriers.
-
Agriculture: Binding hay bales or heavy farm implements during transit.
Why Choose the Ratchet Load Binder Over the Lever Binder?
- Safer operation with no sudden snap-back
- Easier to apply precise tension
- Better for frequent use in transport logistics
- Ideal for users prioritizing safety and control
