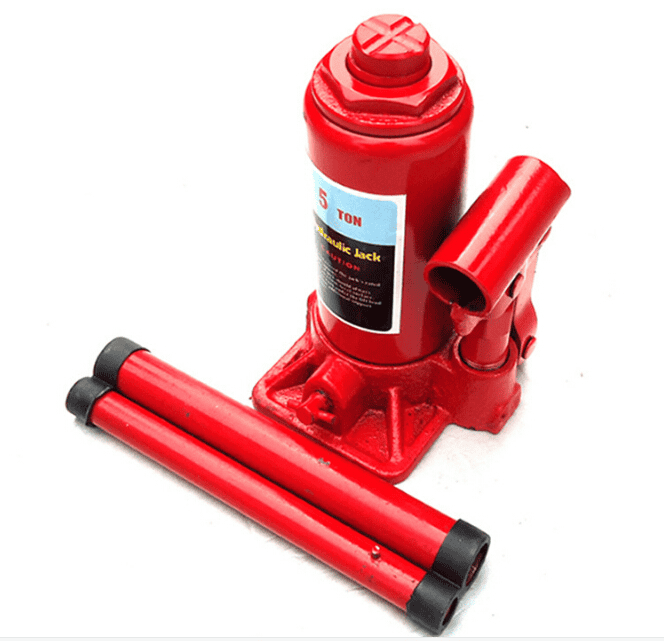

Industrial Hydraulic Bottle Jack with Overload Safety Valve – OEM Supplier
The hydraulic bottle jack with safety valve is designed for safe and efficient lifting in automotive and industrial applications. Equipped with a built-in overload protection system, it prevents excessive pressure and ensures operator safety during use.
Built with heavy-duty steel construction, this bottle jack delivers high load capacity, durability, and long service life, making it ideal for workshops, garages, logistics, and construction environments.
Technical Specifications
| Capacity | Min H. | Lift H. | Adjust H. | Max H. | Weight |
| T | mm | mm | mm | mm | kg |
| 2 | 148 | 80 | 50 | 278 | 2.1 |
| 3 | 180 | 110 | 60 | 350 | 2.9 |
| 4 | 180 | 110 | 60 | 350 | 2.9 |
| 5 | 185 | 110 | 60 | 355 | 3.6 |
| 6 | 185 | 110 | 60 | 355 | 3.6 |
| 8 | 200 | 125 | 60 | 385 | 4.8 |
| 10 | 200 | 125 | 60 | 385 | 5.2 |
| 12 | 210 | 130 | 60 | 400 | 6.3 |
| 15 | 225 | 135 | 60 | 420 | 7.3 |
| 16 | 225 | 135 | 60 | 420 | 7.3 |
| 20 | 235 | 145 | 60 | 440 | 9.6 |
| 25 | 255 | 150 | 0 | 405 | 12 |
| 30 | 255 | 150 | 0 | 405 | 12 |
| 32 | 255 | 150 | 0 | 405 | 12 |
| 50 | 255 | 150 | 0 | 405 | 18.5 |
| 100 | 335 | 180 | 0 | 515 | 66 |
Features
-
Integrated Safety Valve: Prevents the ram from over-extending and protects the hydraulic system from overloading.
-
Heavy-Duty Construction: Made of high-grade steel for maximum durability and leak-free performance.
- OEM/ODM Services Available
Why use a bottle jack with a safety valve?
Unlike standard jacks, our safety valve (also known as a bypass valve) acts as an automatic circuit breaker for physical weight. If the load exceeds the limit, the valve opens to release pressure, preventing catastrophic failure and ensuring the operator’s safety.
