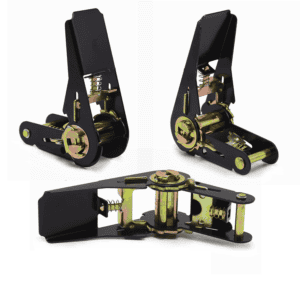

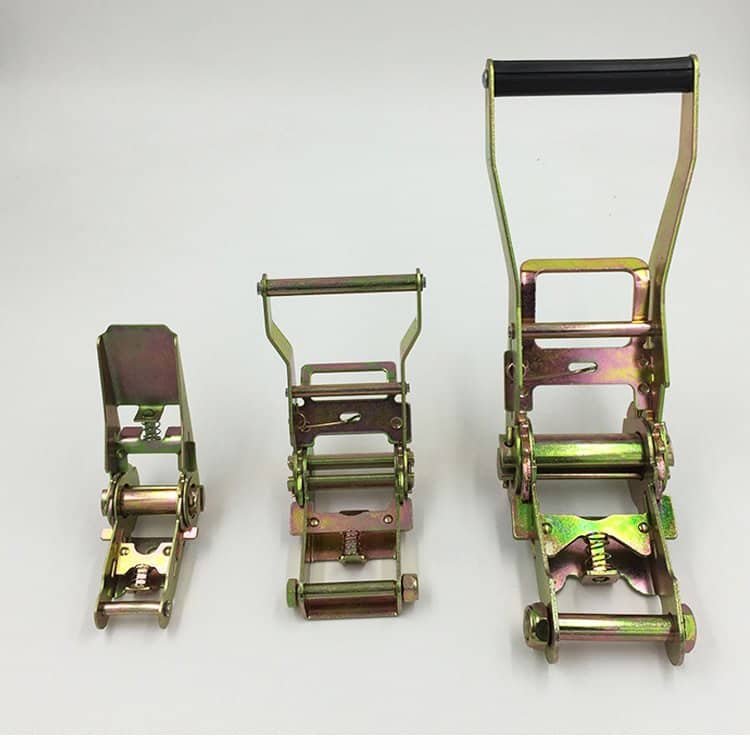

Heavy Duty Ratchet Buckle for 1″-4″ Webbing, 500kg to 10T Breaking Strength, Zinc Plated & Stainless Steel
Our ratchet buckles are engineered for the most demanding industrial lashing environments. Whether you need standard 2-inch buckles for logistics or corrosion-resistant stainless steel for marine applications, we provide a full range of TUV/GS compliant solutions to ensure your cargo stays secured, every time.
Technical Specifications
-
Webbing Width: 25mm (1″) | 35mm (1.5″) | 50mm (2″) | 75mm (3″) | 100mm (4″)
-
Breaking Strength (B.S.): 500kg to 10,000kg
-
Material & Finish: Zinc Plated Steel (Standard) | Black E-Coated (Premium High-End) | Stainless Steel 304/316
| Size | Handle Type | Surface Finish | Breaking Load |
| 1″ 25mm | Standard / Rubber | Zinc Plated / Yellow Zinc / Powder Coated / Black Painted | 500kg/800kg/1000kg |
| 1-1/16″ 28mm | Steel | Zinc Plated / Yellow Zinc / Powder Coated / Black Painted | 1000kg/1500kg |
| 1.5″ 35mm | Steel/Plastic/Rubber | Zinc Plated / Yellow Zinc / Powder Coated / Black Painted | 2000kg/3000kg |
| 2″ 50mm | Standard / Wide / Long / Rubber / Plastic /Steel /Aluminum | Zinc Plated / Yellow Zinc / Powder Coated / Black Painted | 2000kg/3000kg/4000kg/5000kg |
| 3″ 75mm | Aluminum | Zinc Plated / Yellow Zinc / Powder Coated / Black Painted | 10000kg |
| 4″ 100mm | Aluminum | Zinc Plated / Yellow Zinc / Powder Coated / Black Painted | 10000kg |
| 2″ 50mm | Ergo Handle | Zinc Plated / Powder Coated | 5000kg/6000kg |
FAQ
-
Q: How do I choose the correct breaking strength for my buckle?
-
A: We recommend a Breaking Strength (B.S.) that is 2 times your actual Working Load Limit (WLL) to provide a necessary safety margin.
-
-
Q: Do you offer OEM/Private Labeling?
-
A: Yes. We can emboss your logo on the handle, customize handle materials (Aluminum/Plastic), or apply specific coatings based on your requirements.
-
-
Q: What is the advantage of Black E-coating?
-
A: Beyond its sleek professional look, E-coating provides superior chip resistance and is ideal for high-end vehicle recovery kits.
-
