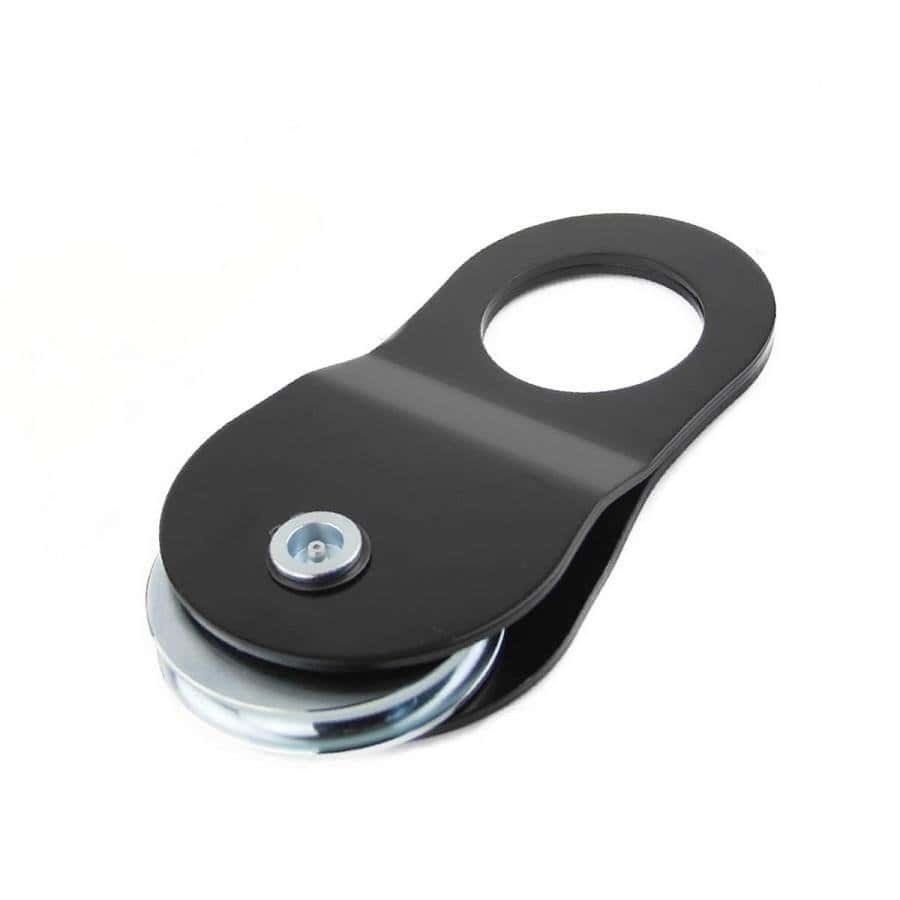

Snatch Block Pulley for Winch, Recovery & Lifting Applications
This heavy-duty snatch block pulley is designed for winching, towing, off-road recovery, and material handling applications. Manufactured from high-strength steel with a durable powder-coated finish, the pulley block helps increase pulling power, reduce winch load, and change pulling direction safely and efficiently.
Suitable for use with synthetic ropes or steel cables, this recovery pulley block is widely used on 4×4 vehicles, ATVs, UTVs, trucks, trailers, forestry equipment, and industrial lifting systems.
Technical Specifications
| Specification | Parameter / Details |
| Product Type | Heavy Duty Snatch Block / Winch Pulley Block |
| Working Load Limit (WLL) | 2 Ton / 4 Ton / 8 Ton / 10 Ton |
| Material | High-tensile forged steel side plates & heavy-duty steel pulley |
| Surface Treatment | Premium anti-corrosion powder coating (Matte Black / High-Gloss Red) |
| Cable Compatibility | Suitable for both Synthetic Winch Ropes and Steel Wire Ropes |
| Lubrication | Built-in grease zerk for easy maintenance and smooth rotation |
| Application | 4×4 Off-Road Recovery, ATV/UTV Winching, Cargo Lashing, Industrial Rigging |
How to Use a Snatch Block for Off-Road Recovery?
Pro Tip for Safe Recovery:
-
Rotate the side plates open and place your winch line around the pulley wheel.
-
Close the plates, ensuring the two large holes align perfectly.
-
Pass a rated bow shackle or soft shackle through both holes and attach it to a secure anchor point (like a tree strap or another vehicle’s recovery point).
-
Always ensure the integrated grease fitting is well-maintained to guarantee a frictionless pull.
