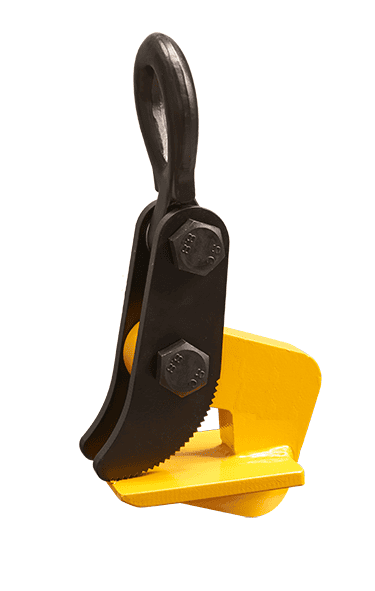

TCH Horizontal Plate Lifting Clamp | Heavy Duty Steel Plate Clamp for Horizontal Lifting
Manufactured from high-strength forged alloy steel, TCH clamps provide reliable gripping force and secure load handling in industrial lifting applications.
This clamp is designed to be used in pairs with chain slings for balanced horizontal lifting operations. It is ideal for workshops, steel fabrication plants, shipyards, warehouses, and construction projects.
Feature
- Designed for horizontal lifting of steel plates and bundles
- Used in pairs with two-leg chain slings
- WLL range: 1 Ton – 10 Ton
- Suitable for a minimum plate thickness from 5mm
- Jaw opening range up to 150mm
- Plate width up to 1500mm
Specifications
| Model | WLL per Pair (Ton) | Jaw Opening (mm) | Plate Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| TCH1 | 1 | 5-32 | ≥5 | 6 |
| TCH2 | 2 | 5-32 | ≥5 | 5.4 |
| TCH4 | 4 | 5-50 | ≥5 | 10 |
| TCH6 | 6 | 5-75 | ≥5 | 24.5 |
| TCH8 | 8 | 5-75 | ≥5 | 26.5 |
| TCH10 | 10 | 5-100 / 50-150 | ≥5 | 48/52 |
Safety Instructions
⚠️ Important Safety Notes:
- Always use clamps in pairs
- For horizontal lifting only
- Maximum lifting angle from vertical: 45°
- Never exceed the rated working load limit
- Avoid shock loading and jerking
- Inspect the clamp before each use
