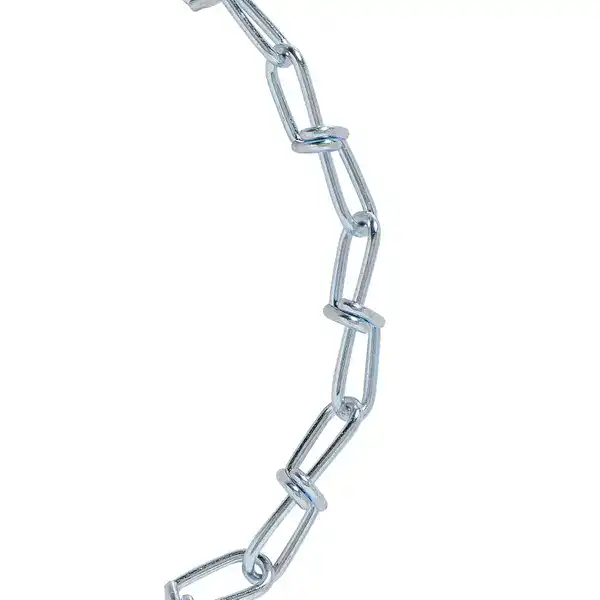

Zinc Plated Knotted Chain for Hanging & Display Applications
The knotted chain is a type of decorative metal chain with twisted or knotted links, designed for both aesthetic appearance and light-duty utility use. Compared with standard chains, it offers a more decorative look while maintaining flexibility and moderate strength.
Specifications
| Parameter | Details |
|---|---|
| Material | Low Carbon Steel / Stainless Steel |
| Surface Finish | Zinc Plated / Brass / Black / Nickel |
| Size Range | 1.4mm – 5mm |
| Structure | Knotted / Twisted Link |
| Length | Customizable |
| Packaging | Reel / Bag / Carton |

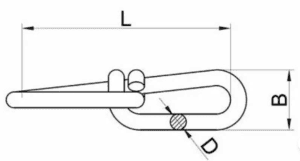

| Chain Size (D-mm) | INSDE LENTH (L-mm) | OUTSIDE WIDTH (B-mm) | BREAKING LOAD (KG) | WEIGHT PER 100M (KG) |
| 1.4 | 21 | 6.5 | 16 | 4.2 |
| 1.6 | 23 | 7 | 22 | 6 |
| 1.8 | 26 | 8 | 30 | 7.3 |
| 2 | 28 | 9 | 40 | 9 |
| 2.2 | 31 | 10 | 50 | 11 |
| 2.5 | 35 | 11 | 70 | 14 |
| 2.8 | 39 | 12.5 | 90 | 17 |
| 3.1 | 41 | 14 | 120 | 21 |
| 3.4 | 44 | 15 | 140 | 26 |
| 3.8 | 46 | 17 | 160 | 34 |
| 4.2 | 50 | 19 | 170 | 41 |
| 4.6 | 55 | 20.5 | 180 | 50 |
| 5 | 60 | 22.5 | 190 | 57 |
FAQ
Q: Is your knotted chain suitable for outdoor use? A: Yes, our Hot-Dipped Galvanized knotted chains offer superior rust resistance and are designed for long-term outdoor agricultural and industrial use.
Q: Can the chain be customized to specific lengths? A: Absolutely. We provide customization for both link sizes and overall length per reel to meet your project requirements.
Q: What is the main advantage of a knotted chain over a welded chain? A: Knotted chains are more cost-effective for light to medium-duty tasks and offer better flexibility and resistance to kinking compared to traditional welded links.
