CD Vertical Plate Lifting Clamp | Steel Plate Clamp with Safety Lock

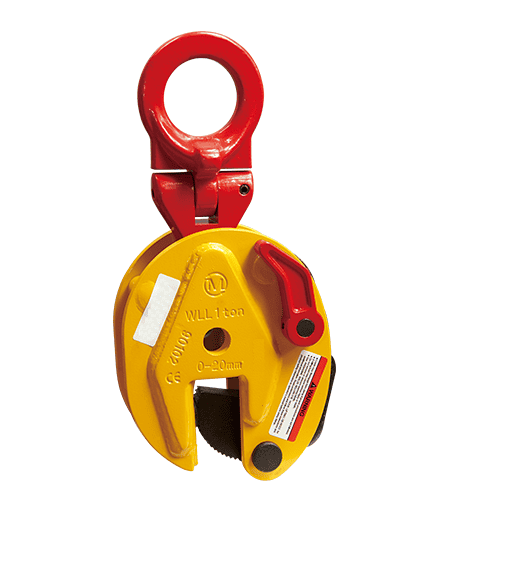

The CD Type Vertical Lifting Clamp is the most trusted, classic workhorse in the heavy industry, specifically engineered to lift, flip, and transport steel plates and structures vertically. Equipped with an automatic spring-loaded safety locking mechanism, it forces the jaw to bite down tightly onto the plate before the hoist even begins—ensuring an unyielding grip under loaded, unloaded, or dynamic shock conditions.
Specifications
| SIZE(T) | JAW OPENING(MM) | LOAD CAPACITY(KG) | T | U | V | L | WEIGHT(KG) |
| 0.5 | 0-15 | 500 | 205 | 30 | 105 | 48 | 2 |
| 1 | 0-20 | 1000 | 300 | 50 | 145 | 66 | 5 |
| 2 | 0-25 | 2000 | 385 | 68 | 175 | 75 | 8 |
| 3.2 | 0-30 | 3200 | 430 | 75 | 215 | 102 | 15 |
| 5 | 0-50 | 5000 | 500 | 68 | 232 | 112 | 23 |
| 8 | 0-45 | 8000 | 600 | 88 | 290 | 125 | 37 |
| 12 | 50-90 | 12000 | 700 | 90 | 420 | 128 | 50 |
| 16 | 60-100 | 16000 | 710 | 100 | 445 | 128 | 65 |
| 20 | 0-80 | 20000 | 948 | 100 | 563 | 140 | 160 |
| 30 | 10-90 | 30000 | 944 | 100 | 568 | 142 | 167 |
CD vertical clamps are certified for SINGLE CLAMP operation on compact sheets. For extra-long or flexible steel plates, always utilize two CD clamps spaced apart on a balancing spreader beam to avoid dangerous lateral bending.
