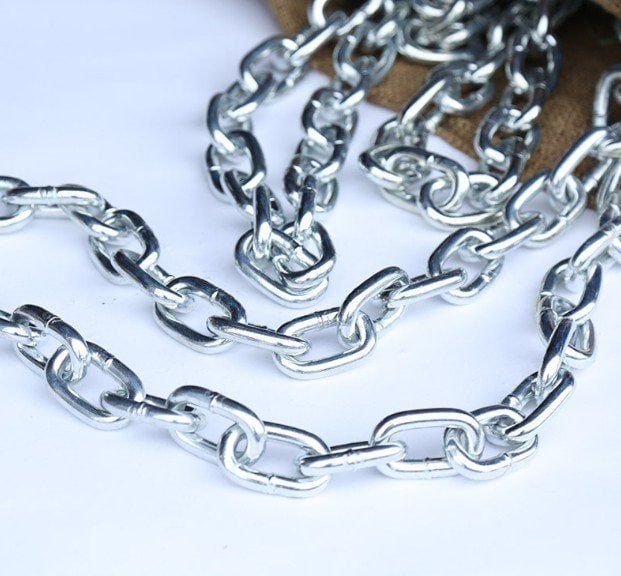

DIN 5685 Steel Chain | Form A (Short Link) & Form C (Long Link) | Galvanized & Stainless Steel
The DIN 5685 is a versatile, non-calibrated steel link chain designed for light-duty applications. It is available in two distinct configurations:
-
Form A (Short Link): A compact design for higher flexibility.
-
Form C (Long Link): A longer pitch design, making it more lightweight and cost-effective for boundary marking and decorative use.
Technical Specifications
- Material: Low carbon steel
- Surface Finish Options:
- Zinc Plated (Electro Galvanized)
- Hot Dip Galvanized (Outdoor use)
- Black / Self Color
| DIN5685A/C Short/Long link Chain | |||||||
| Size(d) | Inside length | Outside width | Inside Width | Test Load | Breaking load | Working load limit | Type |
| mm | mm | mm | mm | kg | kg | kg | |
| 2 | 12 | 8 | 4 | 500 | 1250 | 250 | A |
| 22 | C | ||||||
| 2.5 | 14 | 10 | 5 | 750 | 2000 | 375 | A |
| 24 | C | ||||||
| 3 | 16 | 12 | 6 | 1120 | 2800 | 560 | A |
| 26 | C | ||||||
| 3.5 | 18 | 14 | 7 | 1500 | 3850 | 750 | A |
| 28 | C | ||||||
| 4 | 19 | 16 | 8 | 2000 | 5000 | 1000 | A |
| 32 | C | ||||||
| 4.5 | 20 | 18 | 9 | 2500 | 6300 | 1250 | A |
| 34 | C | ||||||
| 5 | 21 | 20 | 10 | 3150 | 7750 | 1575 | A |
| 35 | C | ||||||
| 5.5 | 23 | 22 | 11 | 3800 | 9500 | 1900 | A |
| 39 | C | ||||||
| 6 | 24 | 24 | 12 | 4500 | 11500 | 2250 | A |
| 42 | C | ||||||
| 6.5 | 26 | 26 | 13 | 5400 | 13500 | 2700 | A |
| 46 | C | ||||||
| 7 | 28 | 28 | 14 | 6000 | 15000 | 3000 | A |
| 49 | C | ||||||
| 8 | 32 | 32 | 16 | 8000 | 20000 | 4000 | A |
| 52 | C | ||||||
| 8.5 | 34 | 34 | 17 | 9000 | 22500 | 4500 | A |
| 56 | C | ||||||
| 9 | 36 | 36 | 36 | 10000 | 25000 | 5000 | A |
| 59 | C | ||||||
| 10 | 40 | 40 | 20 | 12500 | 31000 | 6250 | A |
| 65 | C | ||||||
| 11 | 44 | 44 | 22 | 15000 | 38000 | 7500 | A |
| 72 | C | ||||||
| 12 | 48 | 48 | 24 | 18000 | 45000 | 9000 | A |
| 78 | C | ||||||
| 13 | 52 | 52 | 26 | 21200 | 53000 | 10600 | A |
| 82 | C | ||||||
Key Features
- Manufactured according to DIN 5685 standard
- Short link structure for improved strength
- Welded chain for durability
- Two types available:
- Type A: lighter duty, longer pitch
- Type C: stronger, shorter pitch
- Multiple surface finishes:
- Electro Galvanized
- Hot Dip Galvanized
FAQ
Q1: What is the difference between DIN 5685A and DIN 5685C?
A: Type C chain has shorter links and higher strength, while Type A is lighter and more flexible.
Q2: Is the DIN 5685 chain suitable for lifting?
A: No, the DIN 5685 chain is not designed for lifting. For lifting, G80 or G100 chains should be used.
Q3: Can you provide the chain in 316 Stainless Steel?
A: Yes, we offer both AISI 304 and AISI 316 for DIN 5685, which are ideal for high-corrosion or decorative applications.
