European Large D Shackle Galvanized | High Strength Dee Shackle Supplier

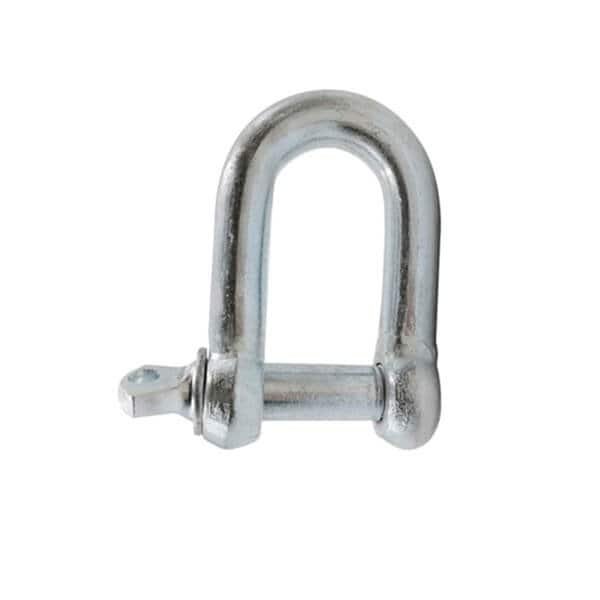

The European Type Large D Shackle (Dee Shackle) is specifically designed for straight-line lifting and rigging applications where high strength and minimal movement are required.
Compared to bow shackles, the narrow “D” shape provides better alignment and reduces side-loading risks, making it ideal for controlled lifting environments.
Technical Specifications
| WLL | D | d | a | c | b | Weight |
| (T) | mm | mm | mm | mm | mm | lbs(100pcs) |
| 0.08 | 5 | 5 | 10 | 19 | 11 | 5 |
| 0.1 | 6 | 6 | 13 | 25 | 14 | 9 |
| 0.2 | 8 | 8 | 16 | 32 | 18 | 18 |
| 0.32 | 10 | 10 | 19 | 38 | 20 | 33 |
| 0.52 | 12 | 12 | 25 | 51 | 26 | 67 |
| 0.8 | 16 | 16 | 32 | 64 | 33 | 127 |
| 1.1 | 20 | 20 | 38 | 76 | 40 | 203 |
| 1.5 | 22 | 22 | 44 | 89 | 50 | 330 |
| 2.1 | 25 | 25 | 51 | 100 | 57 | 508 |
| 3 | 28 | 28 | 57 | 115 | 68 | 787 |
| 3.5 | 32 | 32 | 64 | 127 | 73 | 1091 |
| 5 | 38 | 38 | 76 | 152 | 85 | 1776 |
| 7 | 45 | 45 | 90 | 180 | 96 | 3172 |
| 8 | 50 | 50 | 102 | 200 | 108 | 4441 |
Applications
- Straight-line lifting operations
- Chain sling and wire rope connections
- Construction and engineering lifting
- Industrial rigging systems
- Cargo securing where alignment is critical
