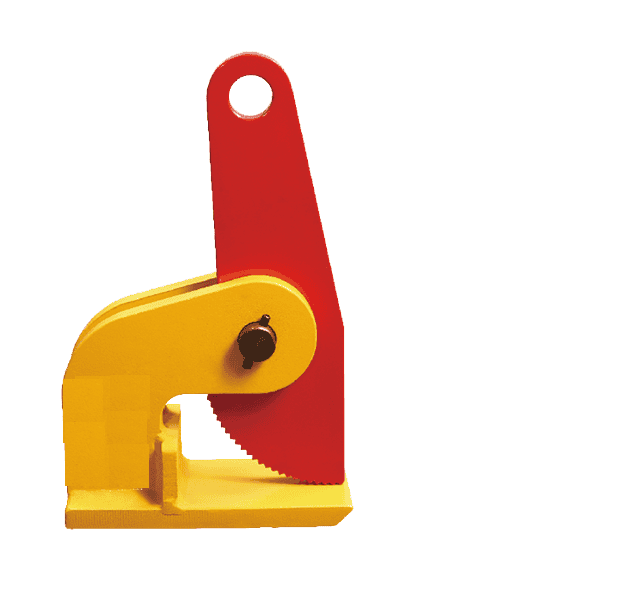

THK/THKS Horizontal Plate Lifting Clamp | Sheet Steel Plate Clamp
THK/THKS model is its large opening capacity and multi-position adjustment. This makes it the absolute industry benchmark for handling extra-thick steel slabs, structural components, and multiple stacked steel sheets.
Specifications
| SIZE(T) | JAW OPENING(MM) | LOAD CAPACITY(KG) | T | U | V | L | WEIGHT(KG) |
| THKS0.5 | 0-35 | 500 | 165 | 60 | 43 | 25 | 3.1 |
| THKS1 | 0-60 | 1000 | 180 | 80 | 68 | 25 | 6 |
| THKS1.5 | 0-60 | 1500 | 180 | 80 | 68 | 25 | 6.5 |
| THKS2 | 0-60 | 2000 | 180 | 80 | 68 | 25 | 7.5 |
| THKS3 | 0-60 | 3000 | 220 | 90 | 80 | 30 | 10 |
| THKS4 | 0-60 | 4000 | 220 | 90 | 70 | 30 | 11.5 |
| THKS5 | 0-60 | 5000 | 220 | 110 | 74 | 30 | 15.5 |
| THKS10 | 0-60 | 10000 | 220 | 130 | 78 | 40 | 23 |
| THK1 | 0-100 | 500 | 180 | 80 | 120 | 25 | 7 |
| THK1.5 | 0-100 | 1500 | 180 | 80 | 120 | 25 | 7.5 |
| THK2 | 0-100 | 2000 | 180 | 80 | 120 | 30 | 9.5 |
| THK3 | 0-100 | 3000 | 220 | 90 | 120 | 30 | 12 |
| THK4 | 0-100 | 4000 | 220 | 90 | 120 | 30 | 14.5 |
| THK5 | 0-100 | 5000 | 220 | 110 | 123 | 45 | 20 |
| THK10 | 0-100 | 10000 | 220 | 125 | 120 | 45 | 28 |
THK/THKS clamps are specialized horizontal lifters and must always be used in pairs (2 pcs) or quads (4 pcs) combined with a lifting beam. The capacities below are rated per PAIR. Please verify your maximum stack height/thickness before choosing a model.
FAQ
Q1: Can THK/THKS clamps safely lift multiple steel plates stacked together?
A: Yes, that is exactly what they are designed for! The wide jaw and structural link design allow the clamp to compress and secure a bundle of plates uniformly. However, for absolute safety when multi-lifting, ensure that the plates are flat, aligned perfectly, of identical size, and that the total stack thickness sits comfortably within the jaw opening range.
What is the technical difference between THK and THKS models?
A: While both are excellent for horizontal lifting, THK has a larger jaw opening.
