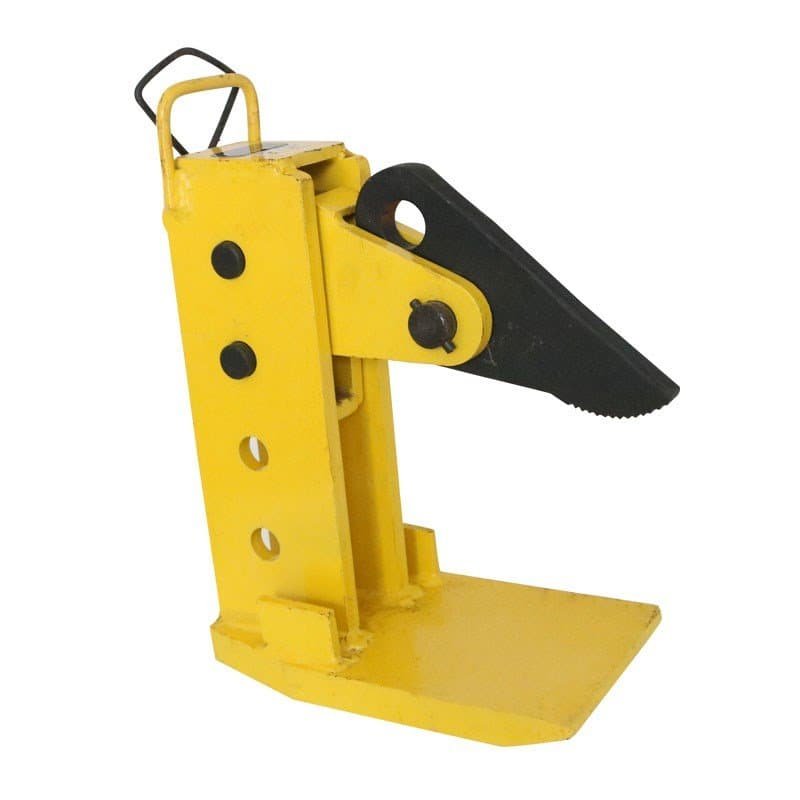

PDK Type Horizontal Lifting Clamp for Stacked Steel Plates – Adjustable Jaw Opening
The PDK type horizontal lifting clamp is specifically engineered for handling bundles of stacked steel sheets. Its unique extended arm and wide jaw design ensure the overall stability of multi-layer plates during transport.
Technical Specifications
| SIZE(T) | JAW OPENING(MM) | LOAD CAPACITY(KG) | A | B | C | D | WEIGHT(KG) |
| 3 | 0-180 | 3000 | 300 | 102 | 270 | 158 | 19 |
| 4.5 | 0-240 | 4500 | 420 | 120 | 280 | 158 | 26 |
| 6 | 0-240 | 6000 | 450 | 123 | 300 | 175 | 40 |
| 8 | 0-240 | 8000 | 515 | 128 | 310 | 200 | 51 |
| 15 | 0-240 | 15000 | 565 | 138 | 324 | 235 | 72 |
WLL shown is per pair. Always use in pairs.
FAQ
How do I determine how many sheets the PDK clamp can handle in one lift?
The number of sheets depends on two factors: Total Stack Thickness and Total Weight.
Can I use PDK clamps to lift a single thin sheet?
It is not recommended. PDK clamps are designed for the pressure of a stack or a thick plate. For a single thin sheet, the clamping force might not be distributed correctly, potentially causing the sheet to bend or slip.
