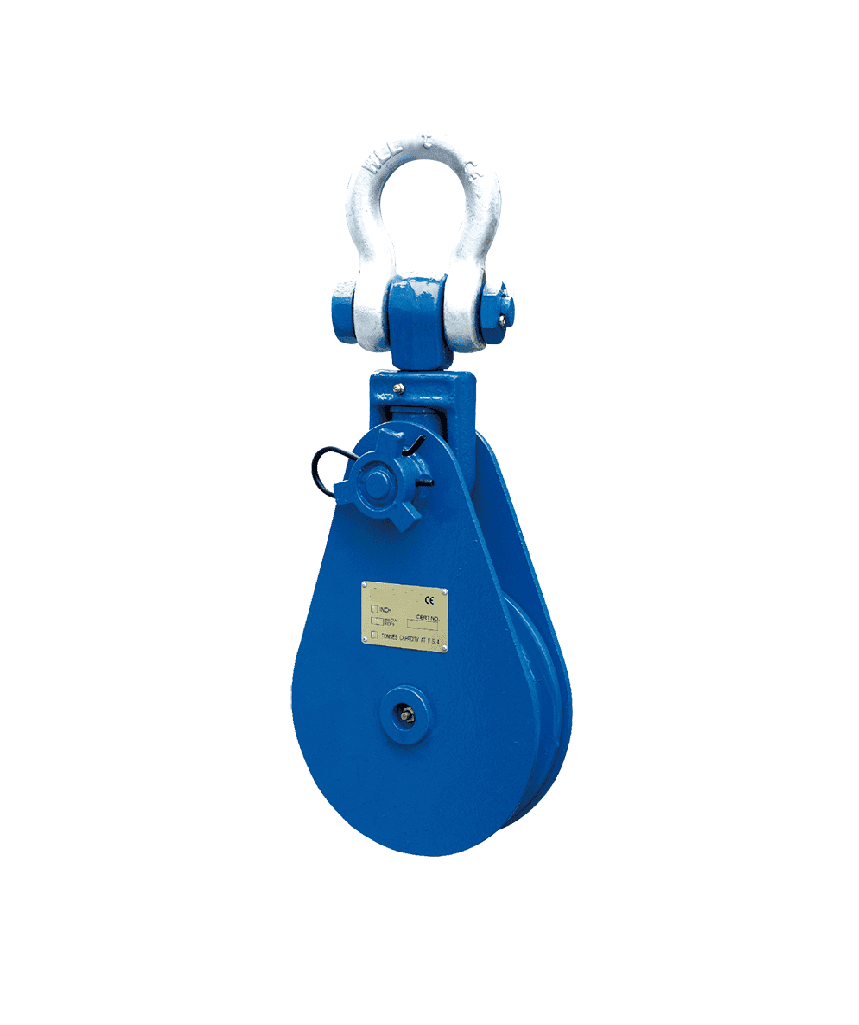

Shackle Type Snatch Block for Wire Rope – High Strength Lifting Pulley Block
The Heavy Duty Snatch Block Shackle Type is designed for demanding lifting, rigging, and pulling applications. Equipped with a shackle connection, it provides a more secure and stable attachment compared to hook-type blocks, making it ideal for high-load and safety-critical operations.
Technical Specifications
| TYPE SHACKLE | SWL(T) | SHEAVE DIA(MM) | A | B | C | FOR WIRE ROPE DIA(MM) | N.W(KG) |
| 3″X1 | 2 | 75 | 286 | 82 | 70 | 7-9 | 3.8 |
| 4(1/2)”X1 | 4 | 115 | 345 | 120 | 70 | 10-12 | 6.2 |
| 6″X1 | 4 | 150 | 399 | 160 | 70 | 16-18 | 8.4 |
| 6″X1 | 8 | 150 | 475 | 160 | 93 | 20-22 | 14.1 |
| 8″X1 | 8 | 200 | 528 | 210 | 93 | 20-22 | 18.7 |
| 8″X1 | 15 | 200 | 663 | 210 | 102 | 22-24 | 33 |
| 10″X1 | 10 | 250 | 679 | 260 | 115 | 24-26 | 34.7 |
| 10″X1 | 12 | 250 | 679 | 260 | 115 | 24-26 | 34.7 |
| 12″X1 | 12 | 300 | 767 | 310 | 133 | 24-26 | 54 |
| 12″X1 | 15 | 300 | 788 | 310 | 133 | 26-28 | 55 |
| 14″X1 | 22 | 355 | 952 | 365 | 140 | 28-32 | 109 |
| 16″X1 | 22 | 400 | 1019 | 415 | 140 | 28-32 | 118 |
| 16″X1 | 30 | 400 | 1126 | 415 | 155 | 32-35 | 164 |
| 20″X1 | 30 | 500 | 1256 | 514 | 162 | 32-35 | 208 |
| 24″X1 | 50 | 600 | 1525 | 625 | 240 | 46-50 | 418 |
| 30″X1 | 85 | 760 | 1910 | 800 | 288 | 56-64 | 840 |
FAQ
Q: Why is a Shackle Type snatch block safer than a Hook Type?
-
A: The Shackle Type creates a closed-loop connection with a bolt and nut or a cotter pin, ensuring the block remains securely attached to the anchor point even if the line goes slack.
