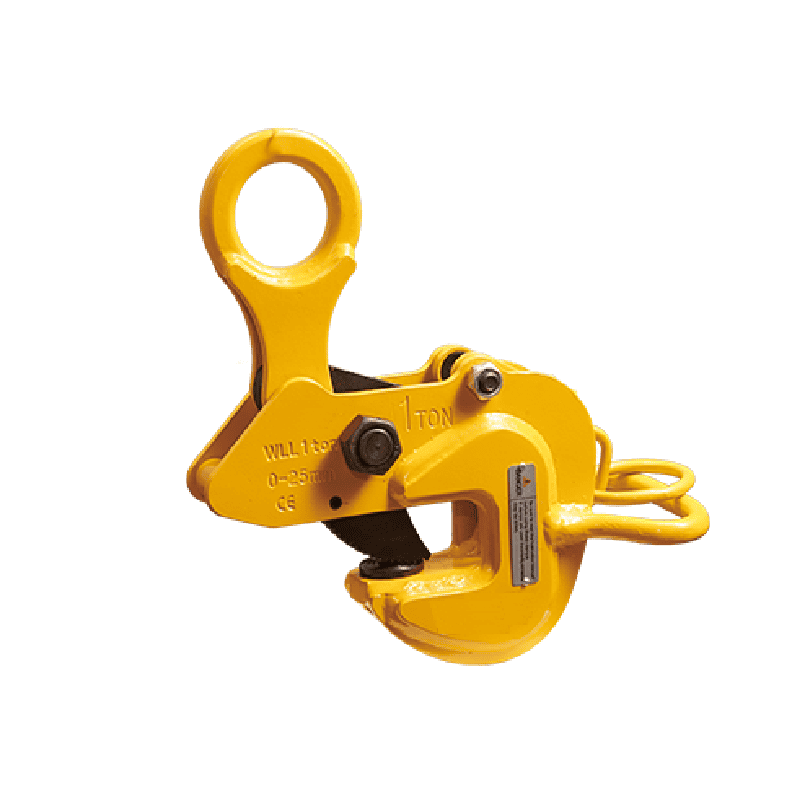

TMC Type Horizontal Plate Lifting Clamp | Compact Steel Structure Clamps
The TMC Type Horizontal Lifting Clamp brings a compact, lightweight profile combined with a high-leverage cam-locking link system. Engineered specifically for transferring steel plates, H-beams, and complex weldments, the TMC clamp delivers massive gripping pressure without the deadweight, reducing worker fatigue while ensuring the load stays locked—even under dynamic vibrations.
Specifications
| SIZE(T) | JAW OPENING(MM) | LOAD CAPACITY(KG) | T | U | V | L | WEIGHT(KG) |
| 0.5 | 0-25 | 500 | 235 | 122 | 54 | 44 | 3 |
| 1 | 0-25 | 1000 | 262 | 155 | 60 | 50 | 5 |
| 2 | 0-30 | 2000 | 280 | 177 | 72 | 56 | 7.2 |
| 3 | 0-38 | 3000 | 315 | 209 | 88 | 58 | 10 |
| 5 | 0-40 | 5000 | 380 | 261 | 104 | 60 | 26.8 |
MC clamps are dedicated horizontal lifters and must always be used in pairs (2 pcs) or multiples of two (4 pcs) along a spreader beam. The capacities below are rated per PAIR. Please verify your maximum flange or plate thickness before choosing a model.
