US Type Malleable Steel Eye-Eye Turnbuckle for Cable Railing & Marine Rigging

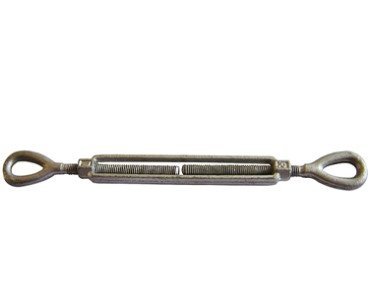

The US type drop forged turnbuckle with eye & eye ends is a heavy-duty tensioning device designed for adjusting and maintaining tension in wire ropes, chains, and cable assemblies. Manufactured through a drop forging process, it provides superior strength, durability, and reliability compared to cast turnbuckles.
The eye-to-eye design ensures secure and stable connections, making it ideal for applications requiring fixed attachment points.
Specifications
| Size | WLL | Weight | Dimensions(mm) | ||||||||
| in | lbs | lbs | A | J OPEN | K CLOSED | M OPEN | N CLOSED | R | S | X CLOSED | B.S |
| 1/4×4 | 500 | 0.3 | 0.25 | 11.8 | 7.8 | 12.25 | 8.25 | 0.78 | 0.34 | 1.75 | 4 |
| 5/16×4-1/2 | 800 | 0.47 | 0.31 | 13.56 | 9.06 | 14.21 | 9.62 | 0.94 | 0.44 | 2.09 | 4.5 |
| 3/8×6 | 1200 | 0.75 | 0.38 | 17.47 | 11.47 | 18.16 | 12.16 | 1.12 | 0.53 | 2.52 | 6 |
| 1/2×6 | 2200 | 1.6 | 0.5 | 19.08 | 13.08 | 19.96 | 13.96 | 1.44 | 0.72 | 3.23 | 6 |
| 1/2×9 | 2200 | 1.83 | 0.5 | 25.08 | 16.08 | 25.96 | 16.96 | 1.44 | 0.72 | 3.23 | 9 |
| 1/2×12 | 2200 | 2.08 | 0.5 | 31.08 | 19.08 | 31.96 | 19.96 | 1.44 | 0.72 | 3.23 | 12 |
| 5/8×6 | 3500 | 2.75 | 0.63 | 20.68 | 14.68 | 21.68 | 15.68 | 1.75 | 0.88 | 3.9 | 6 |
| 5/8×9 | 3500 | 3.13 | 0.63 | 26.68 | 17.68 | 27.68 | 18.68 | 1.75 | 0.88 | 3.9 | 9 |
| 5/8×12 | 3500 | 3.5 | 0.63 | 32.68 | 20.68 | 33.68 | 21.68 | 1.75 | 0.88 | 3.9 | 12 |
| 3/4×6 | 5200 | 3.89 | 0.75 | 22.38 | 16.38 | 23.62 | 17.62 | 2.09 | 1 | 4.69 | 6 |
| 3/4×9 | 5200 | 4.61 | 0.75 | 28.38 | 19.38 | 29.62 | 20.62 | 2.09 | 1 | 4.69 | 9 |
| 3/4×12 | 5200 | 5.43 | 0.75 | 34.38 | 22.38 | 35.62 | 23.62 | 2.09 | 1 | 4.69 | 12 |
| 3/4×18 | 5200 | 7.25 | 0.75 | 46.38 | 28.38 | 47.62 | 29.62 | 2.09 | 1 | 4.69 | 18 |
| 7/8×12 | 7200 | 8.1 | 0.88 | 35.32 | 23.32 | 36.82 | 24.82 | 2.38 | 1.25 | 5.1 | 12 |
| 7/8×18 | 7200 | 9.95 | 0.88 | 47.32 | 29.32 | 48.82 | 30.82 | 2.38 | 1.25 | 5.1 | 18 |
| 1×6 | 10000 | 9.33 | 1 | 25.97 | 19.97 | 27.72 | 21.72 | 3 | 1.44 | 6.36 | 6 |
| 1×12 | 10000 | 11.93 | 1 | 37.97 | 25.97 | 39.97 | 27.72 | 3 | 1.44 | 6.36 | 12 |
| 1×18 | 10000 | 14 | 1 | 49.97 | 31.97 | 51.72 | 33.72 | 3 | 1.44 | 6.36 | 18 |
| 1×24 | 10000 | 17.25 | 1 | 61.97 | 37.97 | 63.72 | 39.72 | 3 | 1.44 | 6.36 | 24 |
| 1-1/4×12 | 15200 | 19 | 1.25 | 40.31 | 28.31 | 42.56 | 30.56 | 3.56 | 1.81 | 7.72 | 12 |
| 1-1/4×18 | 15200 | 23 | 1.25 | 52.31 | 34.31 | 54.56 | 36.56 | 3.56 | 1.81 | 7.72 | 18 |
| 1-1/4×24 | 15200 | 27 | 1.25 | 64.31 | 40.31 | 66.56 | 42.56 | 3.56 | 1.81 | 7.72 | 24 |
| 1-1/2×12 | 21400 | 27.5 | 1.5 | 42.5 | 30.5 | 45 | 33 | 4.06 | 2.12 | 8.62 | 12 |
| 1-1/2×18 | 21400 | 31 | 1.5 | 54.5 | 36.5 | 57 | 39 | 4.06 | 2.12 | 8.62 | 18 |
| 1-1/2×24 | 21400 | 37.5 | 1.5 | 66.5 | 42.5 | 69 | 45 | 4.06 | 2.12 | 8.62 | 24 |
| 1-3/4×18 | 28000 | 52.5 | 1.75 | 57.38 | 39.38 | 60.38 | 42.38 | 4.62 | 2.38 | 10 | 18 |
| 1-3/4×24 | 28000 | 58 | 1.75 | 69.38 | 45.38 | 72.38 | 48.38 | 4.62 | 2.38 | 10 | 24 |
| 2×24 | 37000 | 85.25 | 2 | 75.69 | 51.69 | 79.19 | 55.19 | 5.75 | 2.69 | 13.09 | 24 |
| 2-1/2×24 | 60000 | 144.25 | 2.5 | 78.62 | 54.62 | 82.62 | 58.62 | 6.5 | 3.12 | 13.78 | 24 |
| 2-3/4×24 | 75000 | 194 | 2.75 | 81 | 57 | 85.5 | 61.5 | 7 | 3.25 | 15.22 | 24 |
Applications
-
Marine Rigging: Securing boat masts and docking lines.
-
Construction: Structural steel tensioning and suspension bridge cables.
-
Outdoor Events: Tensioning for large tents, shade sails, and awnings.
-
Power Lines: Utility pole guy wire adjustment.
