Portable Hand Lever Wire Rope Puller | Industrial Manual Hoist for Construction & Forestry

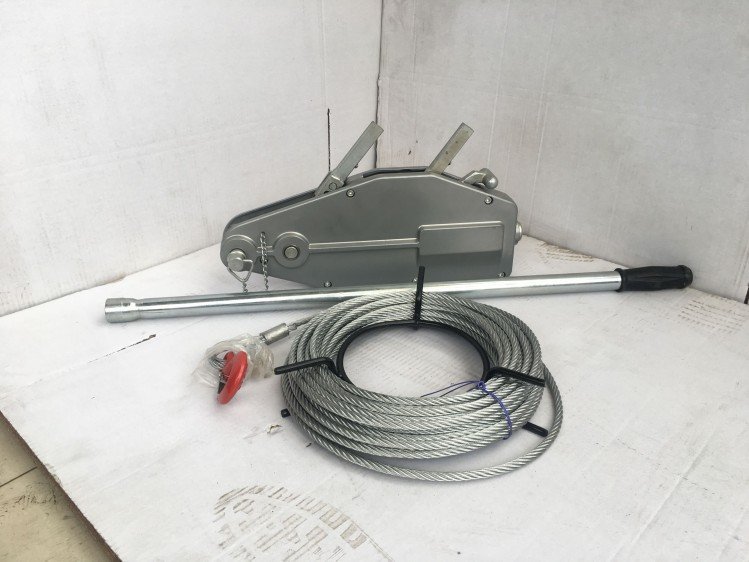

Our Aluminum Alloy Wire Rope Pulling Hoist is a versatile and portable tool for lifting, pulling, and tensioning. Designed with a high-strength aluminum body and an overload protection system, it ensures maximum safety and durability in harsh environments like construction, emergency rescue, and forestry.
Technical Specifications
- Heavy-Duty Construction
Made from high-quality alloy steel for maximum durability and strength - Portable & Compact Design
Easy to carry and ideal for on-site operations - Reliable Ratchet Mechanism
Smooth pulling action with secure load holding - High Safety Performance
Equipped with safety hooks and anti-slip handle - Versatile Application
Suitable for lifting, pulling, stretching, and positioning loads
| RATED CAPACITY(KG) | 800 | 1600 | 3200 | 5400 | |
| RATED FORWARD HAND POWDER | 341 | 438 | 438 | 745 | |
| RATER FORWARD TRAVEL(SWING IT FORWARD AND BACKWARD) | ≥52 | ≥55 | ≥28 | ≥30 | |
| ROPE DIA | 8.3 | 11 | 16 | 20 | |
| WIRE ROPE SAFETY FACTOR LOAD CAPACITY | 5 | 5 | 5 | 6 | |
| SAFETY FACTOR&STATIC LOAD CAPACITY | 5 | 5 | 5 | 6 | |
| MAX. TRAVELLING LOAD | 1200 | 2400 | 4000 | 8000 | |
| DIMENSIONS | A | 426 | 545 | 660 | 932 |
| B | 235 | 280 | 325 | 420 | |
| C | 168 | 190 | 230 | 300 | |
| D | 60 | 72 | 91 | 155 | |
| E | 64 | 97 | 116 | 152 | |
| L1 | 80 | 80 | 80 | 80 | |
| L2 | 80 | 120 | 120 | 120 | |
FAQ
Q: What is the difference between a wire rope pulling hoist and a lever chain hoist?
A: The pulling hoist uses a continuous wire rope, allowing for much longer travel distances compared to the limited chain length of a standard lever block.
Q: Does the hoist come with the wire rope?
A: Standard units include a 20-meter galvanized steel wire rope with a safety hook, but custom lengths are available upon request.
