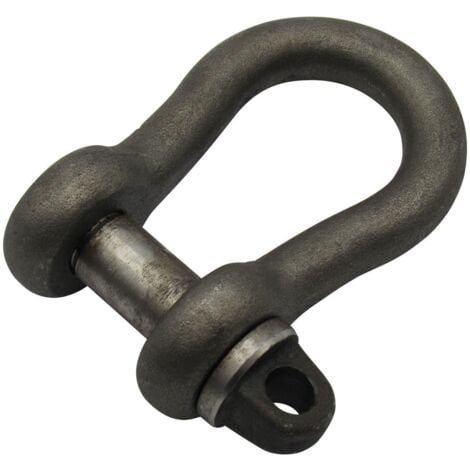

Heavy Duty BS3032 Bow Shackle for Marine & Industrial Lifting
The BS3032 Large Bow Shackle is a heavy-duty lifting and rigging component manufactured in accordance with British Standard specifications. Designed with a wide bow shape, it allows for multi-leg slings and side loading applications, making it ideal for demanding industrial environments.
Key Features
- Manufactured according to BS3032 British Standard
- Large bow design for multi-directional loading
- High tensile carbon steel or alloy steel construction
- Available with screw pin or bolt & nut type
- Surface finish options: hot dip galvanized, electro galvanized
- Excellent corrosion resistance for outdoor and marine environments
- Clearly marked with size, WLL, and batch number for traceability
Technical Data
| (T) | d | D | W | S | e |
| 0.15 | 6 | 10 | 13 | 29 | 19 |
| 0.45 | 10 | 12 | 16 | 41 | 25 |
| 0.75 | 12 | 16 | 22 | 54 | 32 |
| 1.25 | 16 | 20 | 29 | 70 | 38 |
| 2 | 20 | 22 | 35 | 86 | 44 |
| 2.75 | 22 | 25 | 41 | 98 | 51 |
| 3.75 | 25 | 28 | 44 | 108 | 57 |
| 4.75 | 28 | 32 | 51 | 124 | 64 |
| 5.75 | 32 | 35 | 57 | 137 | 70 |
| 8.5 | 38 | 44 | 70 | 168 | 89 |
| 11.5 | 45 | 51 | 86 | 206 | 102 |
| 15 | 50 | 57 | 98 | 238 | 114 |
