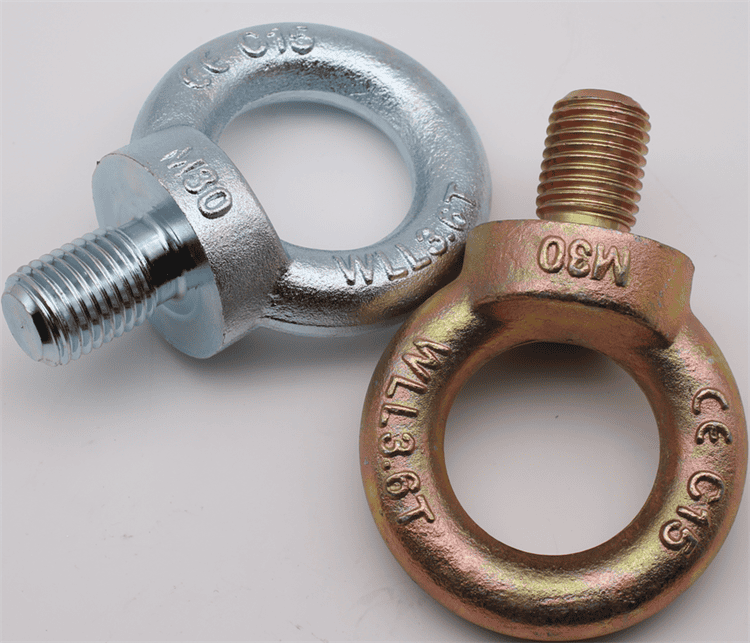

DIN580 Eye Bolt | Lifting Eye Bolt Metric Thread Forged Steel Zinc Plated Eye Bolt
DIN580 eye bolts are widely used lifting components designed for safe and efficient lifting, rigging, and securing operations. Manufactured according to DIN580 standard, these eye bolts provide strong load-bearing capacity and high safety performance.
They are commonly used in construction, machinery installation, marine applications, and industrial lifting systems.
Technical Specifications
- Standard: DIN580
- Material: C15 / C45
- Thread Type: Metric Thread
- Size Range: M6 – M64
- Surface Finish: Zinc plated / HDG / Self Color
| Size | WLL | Weight | Dimension(mm) | ||||||
| mm | T | 100pcs/lbs | d1 | d2 | d3 | b | e | h | k |
| M6 | 0.14 | 11 | 17 | 28 | 13 | 13 | 6 | 17 | 6 |
| M8 | 0.14 | 13 | 20 | 36 | 20 | 15 | 6 | 18 | 8 |
| M10 | 0.23 | 24 | 25 | 45 | 25 | 18 | 8 | 22 | 10 |
| M12 | 0.34 | 40 | 30 | 54 | 30 | 22 | 10 | 26 | 12 |
| M14 | 0.49 | 63 | 35 | 63 | 35 | 28 | 12 | 30 | 14 |
| M16 | 0.7 | 63 | 35 | 63 | 35 | 28 | 12 | 30 | 14 |
| M20 | 1.2 | 99 | 40 | 72 | 40 | 30 | 12 | 35 | 16 |
| M22 | 1.5 | 148 | 45 | 81 | 45 | 35 | 14 | 40 | 18 |
| M24 | 1.8 | 192 | 50 | 90 | 50 | 38 | 16 | 45 | 20 |
| M27 | 2.5 | 194 | 50 | 90 | 50 | 38 | 18 | 45 | 20 |
| M30 | 3.6 | 366 | 65 | 108 | 60 | 45 | 18 | 55 | 24 |
| M33 | 4.3 | 380 | 65 | 108 | 60 | 45 | 22 | 55 | 24 |
| M36 | 5.1 | 585 | 75 | 126 | 70 | 55 | 22 | 65 | 28 |
| M39 | 6.1 | 618 | 75 | 126 | 70 | 55 | 26 | 65 | 28 |
| M42 | 7 | 889 | 85 | 144 | 80 | 65 | 30 | 75 | 32 |
| M45 | 8 | 938 | 85 | 144 | 80 | 65 | 30 | 75 | 32 |
| M48 | 8.6 | 1408 | 100 | 166 | 90 | 70 | 35 | 85 | 38 |
| M52 | 9.9 | 1456 | 100 | 166 | 90 | 70 | 35 | 85 | 38 |
| M56 | 11.5 | 1942 | 110 | 184 | 100 | 80 | 38 | 95 | 42 |
| M64 | 16 | 2736 | 120 | 206 | 110 | 90 | 42 | 100 | 48 |
Safety Instructions
- Ensure correct thread engagement before lifting
- The load must be applied in line with the eye nut
- Avoid angular lifting unless properly rated
- Do not exceed working load limit (WLL)
- Regular inspection is required before use
