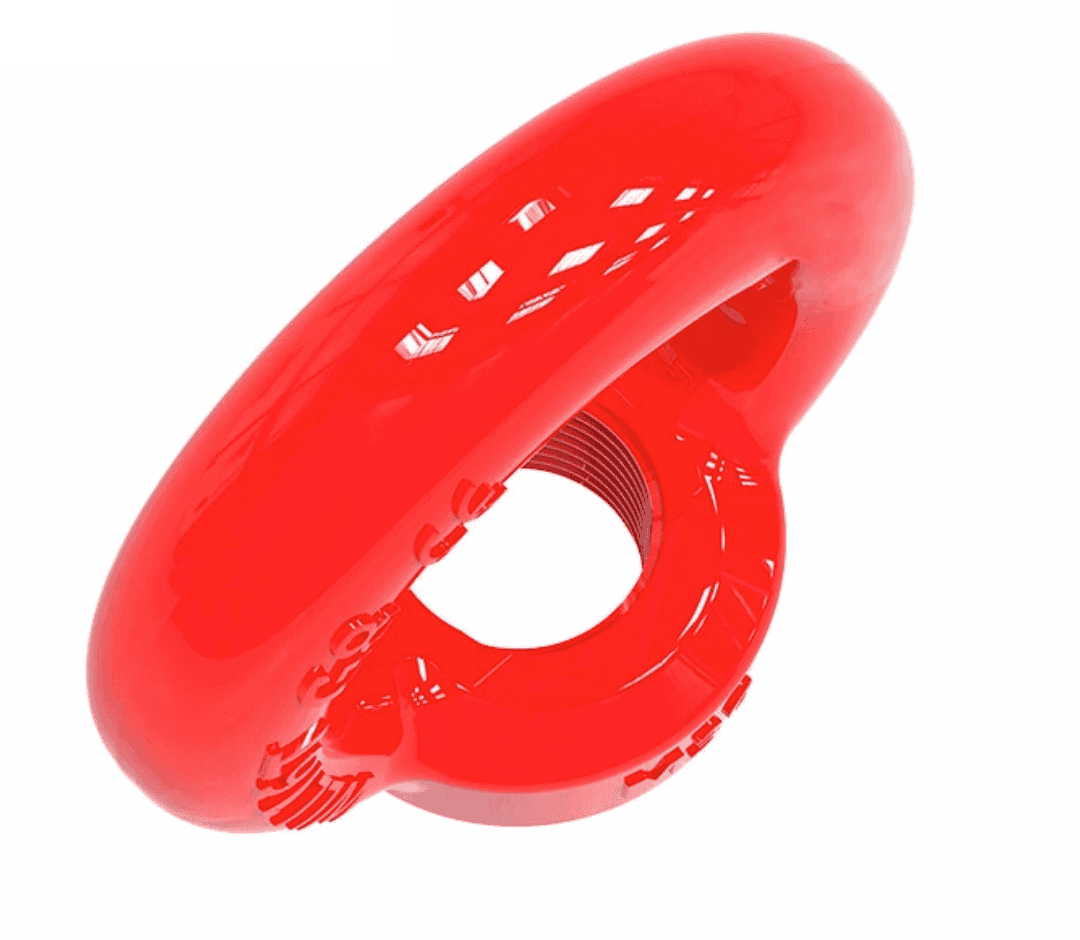

G80 Alloy Steel Lifting Eye Nut | Grade 80 High Tensile Female Lifting Ring
G80 lifting eye nuts are premium lifting components manufactured from high-strength alloy steel and heat-treated for superior performance. Designed for demanding lifting and rigging applications, they are widely used in chain sling systems and heavy industrial operations.
Compared with standard DIN eye nuts, G80 eye nuts offer significantly higher strength, better safety performance, and improved durability under dynamic loads.
Technical Specifications
- Grade: G80
- Material: Alloy Steel
- Thread Type: Metric Thread
- Size Range: M8 – M64
- Finish: Powder coated / Painted / Galvanized
| SIZE | WLL(T) | DIMENSION(MM) | WEIGHT | |||
| MM | WLL 0° | WLL 90° | D | N | L | KG |
| M6 | 0.4 | 0.15 | 36 | 20 | 36 | 0.049 |
| M8 | 1 | 0.4 | 36 | 20 | 36 | 0.05 |
| M10 | 1 | 0.4 | 45 | 25 | 45 | 0.09 |
| M12 | 2 | 0.75 | 54 | 30 | 53 | 0.16 |
| M16 | 4 | 1.5 | 63 | 35 | 62 | 0.24 |
| M20 | 6 | 2.3 | 63 | 35 | 62 | 0.36 |
| M24 | 8 | 3.2 | 72 | 40 | 71 | 0.72 |
| M30 | 12 | 4.5 | 72 | 40 | 71 | 1.32 |
| M36 | 16 | 7 | 81 | 45 | 81 | 2.08 |
| M42 | 24 | 9 | 90 | 50 | 90 | 3.11 |
| M48 | 32 | 12 | 90 | 50 | 90 | 5.02 |
G80 vs DIN Eye Nut
- Higher strength than DIN582 eye nut
- Suitable for dynamic and heavy loads
- Designed for professional lifting systems
- Better safety and traceability
