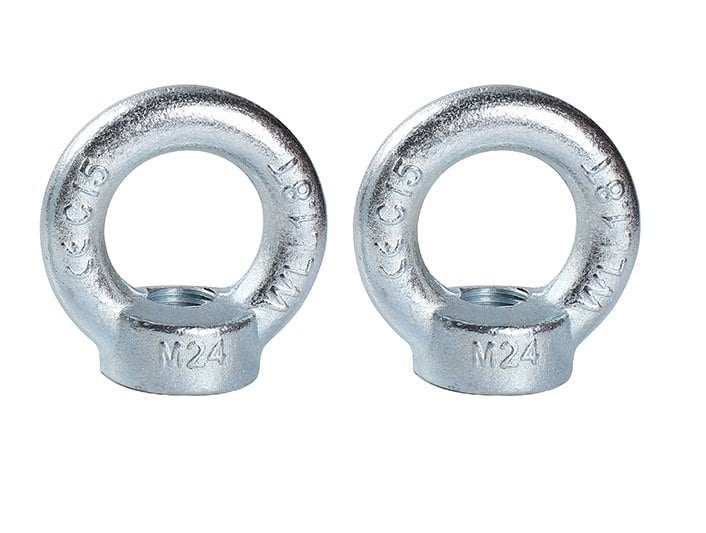

High Tensile DIN582 Female Lifting Rings – Zinc Plated
DIN582 eye nuts are essential lifting accessories used together with threaded bolts or studs to create a secure lifting point. Manufactured according to DIN582 standard, they ensure reliable performance in lifting, hoisting, and rigging operations.
They are widely used in construction, machinery installation, transportation, and industrial applications.
Technical Specifications
- Standard: DIN582
- Material: C15
- Thread Type: Metric Internal Thread
- Size Range: M6 – M64
- Finish: Zinc plated / HDG / Self color
| Size | WLL | Weight | Dimension(mm) | |||||
| mm | T | 100pcs/lbs | d1 | d2 | d3 | e | h | k |
| M6 | 0.14 | 11 | 20 | 36 | 20 | 8.5 | 18 | 8 |
| M8 | 0.14 | 11 | 20 | 36 | 20 | 8.5 | 18 | 8 |
| M10 | 0.23 | 20 | 25 | 45 | 25 | 10 | 22 | 10 |
| M12 | 0.34 | 35 | 30 | 54 | 30 | 11 | 26 | 12 |
| M16 | 0.7 | 53 | 35 | 63 | 35 | 13 | 30 | 14 |
| M20 | 1.2 | 79 | 40 | 72 | 40 | 16 | 35 | 16 |
| M22 | 1.5 | 128 | 45 | 81 | 45 | 18 | 40 | 18 |
| M24 | 1.8 | 159 | 50 | 90 | 50 | 20 | 45 | 20 |
| M27 | 2.5 | 154 | 50 | 90 | 50 | 20 | 45 | 20 |
| M30 | 3.6 | 291 | 65 | 108 | 60 | 25 | 55 | 24 |
| M33 | 4.3 | 287 | 65 | 108 | 60 | 25 | 55 | 24 |
| M36 | 5.1 | 459 | 75 | 126 | 70 | 30 | 65 | 28 |
| M39 | 6.1 | 446 | 75 | 126 | 70 | 30 | 65 | 28 |
| M42 | 7 | 686 | 85 | 144 | 80 | 35 | 75 | 32 |
| M45 | 8 | 671 | 85 | 144 | 80 | 35 | 75 | 32 |
| M48 | 8.6 | 1108 | 100 | 166 | 90 | 40 | 85 | 38 |
| M52 | 9.9 | 1092 | 100 | 166 | 90 | 40 | 85 | 38 |
| M56 | 11.5 | 1476 | 110 | 184 | 100 | 45 | 95 | 42 |
| M64 | 16 | 2052 | 120 | 206 | 110 | 50 | 100 | 48 |
-
- Difference between DIN eye bolt and G80 eye bolt
- DIN Eye Bolt / Nut
→ General-purpose lifting point, suitable for light duty and vertical lifting - G80 Eye Bolt / Nut
→ High-strength lifting component, designed for heavy lifting and professional rigging systems
