Industrial Double Pulley Block | Winch Recovery & Lifting Snatch Block | Dual Sheave

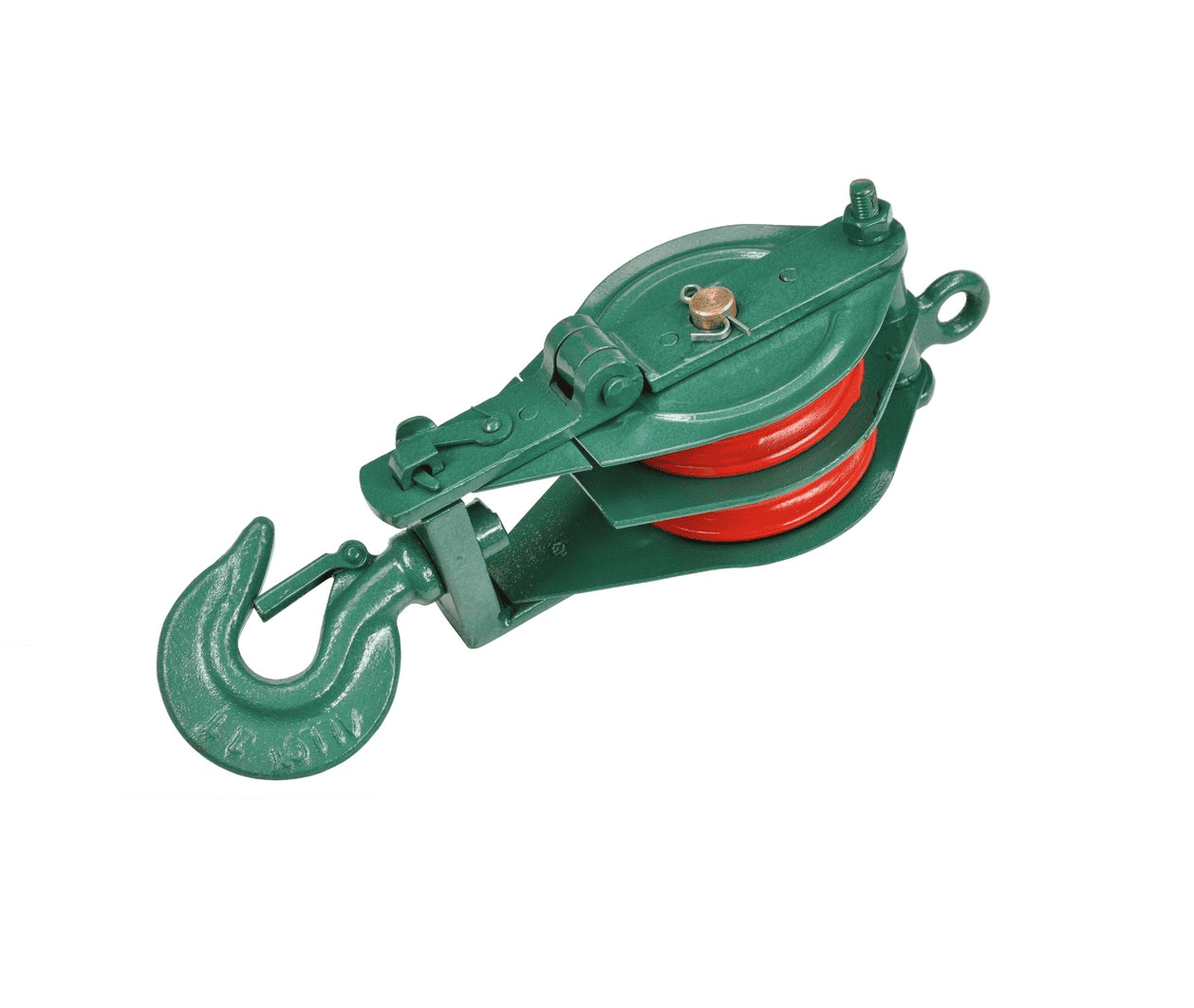

The Double Sheave Snatch Block is a high-performance pulley system designed for heavy lifting, pulling, and load redirection. Featuring two sheaves (double pulleys), it effectively reduces line load and increases mechanical advantage, making it ideal for demanding rigging and recovery operations.
Technical Specifications
| TYPE | SWL(T) | SHEAVE DIA(MM) | DIMENSIONS | FOR WIRE ROPE DIA(MM) | N.W(KG) | ||||
| HOOK | EYE | HOOK A1 | EYE A2 | B | C | ||||
| 75X2S | 75X2SO | 0.5 | 75 | 286 | 227 | 87 | 77 | 8 | 2.8 |
| 100X2S | 100X2SO | 1 | 115 | 311.5 | 284.5 | 112 | 88 | 10 | 4.3 |
| 125X2S | 125X2SO | 1.5 | 150 | 370 | 344 | 140 | 100 | 13 | 7.8 |
| 150X2S | 150X2SO | 2 | 150 | 442.5 | 417 | 168 | 146 | 16 | 12.2 |
| 180X2S | 180X2SO | 3 | 200 | 498 | 478 | 204 | 157 | 19 | 18.5 |
| 200X2S | 200X2SO | 4 | 200 | 590.5 | 556 | 226 | 188 | 22 | 31 |
| 250X2S | 250X2SO | 5 | 250 | 590.5 | 651 | 276 | 220 | 25 | 49.8 |
| 300X2S | 300X2SO | 6 | 250 | 795 | 775 | 330 | 238 | 26 | 72 |
| 350X2S | 350X2SO | 10 | 300 | 934 | 898 | 395 | 260 | 28 | 102 |
This snatch block pulley is widely used in:
- Lifting and rigging operations
- Off-road vehicle recovery
- Construction and industrial sites
- Marine and towing applications
Compatible with:
- Wire rope
- Synthetic rope
- Winch systems
Single vs Double Sheave Snatch Block
Double = More efficient (provides greater mechanical advantage)
Single = Lighter and easier to handle
