Heavy Duty HPC Horizontal Steel Plate Lifting Clamp – 1.5T-9T Steel Lifting Clamp Manufacturer

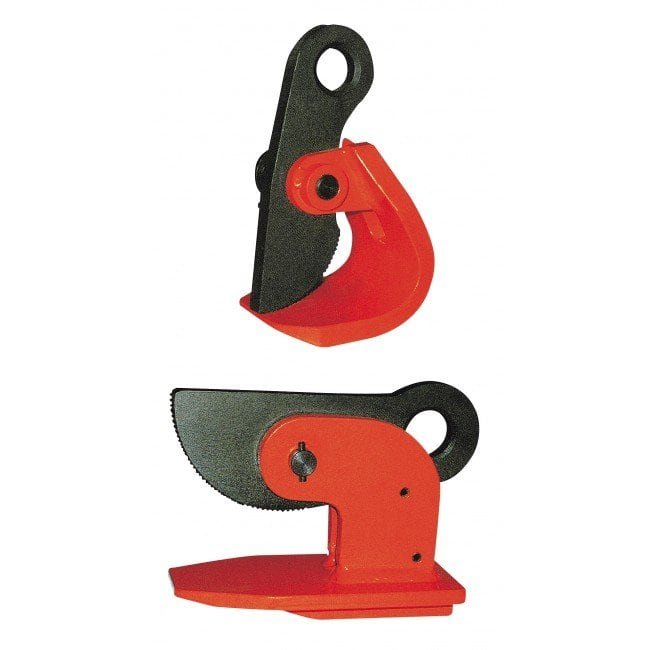

HPC Horizontal Plate Lifting Clamp is specially designed for the horizontal lifting and transportation of steel plates, sheet metal, flat bars, and H-beams.

This clamp features a strong gripping jaw and a safety locking mechanism to ensure secure holding during lifting operations.

Specifications

SIZE(T)	JAW OPENING(MM)	LOAD CAPACITY(KG/Pair)	B	C	D	E	WEIGHT(KG)
1.5	0-50	1500	210	130	100	30	4.3
3	0-50	3000	236	203	110	36	6
5	0-60	5000	273	251	130	40	12
9	0-100	9000	380	290	165	40	28.4

Application

HPC horizontal lifting clamps are ideal for:

• Lifting steel sheets horizontally
• Transporting flat steel plates
• Handling road plates
• Moving H beams and I beams

Safety Instructions

Important:

• Always use 2 or more clamps for horizontal lifting
• Do not exceed the rated load capacity
• Do not lift oily, rusty, or painted plates
• Ensure the plate is fully inserted before lifting
• Keep the lifting angle within manufacturer recommendations

FAQ

Q1: What is an HPC horizontal plate lifting clamp used for?

HPC clamps are used for safely lifting and transporting steel plates horizontally in industrial and construction environments.

Q2: Can HPC clamps lift stainless steel plates?

Generally not recommended unless specially designed for stainless materials.

Q3: Should HPC clamps be used in pairs?

Yes. Horizontal plate clamps must usually be used in pairs or multiple points for load balance.

Q4: What capacity is available?

Common capacities range from 1.5 ton to 9 ton.
