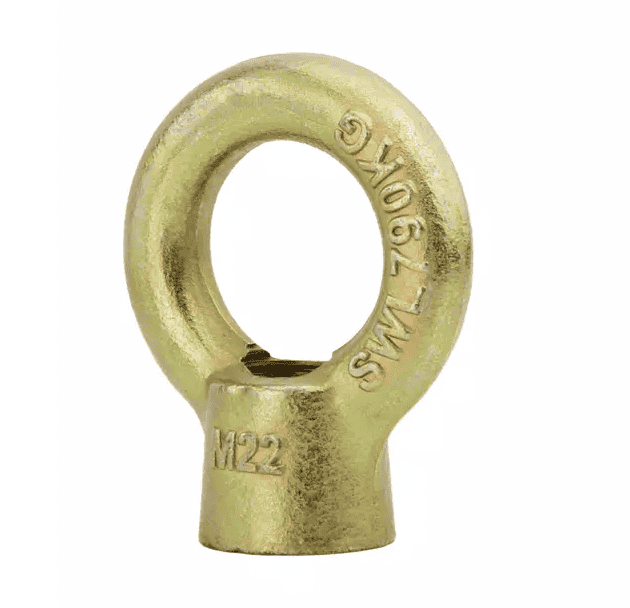

JIS B 1169 Lifting Eye Nut | Japanese Industrial Standard Female Lifting Rings
JIS B1169 eye nuts are manufactured according to Japanese Industrial Standards, ensuring consistent quality, precise dimensions, and reliable performance.
They are widely used in lifting, rigging, and securing operations, especially in Japan and Asian industrial markets.
Used together with eye bolts or threaded studs, they provide a secure and stable lifting point for various applications.
Technical Specifications
| Size | WLL | Dimension(mm) | ||||||
| mm | KN | a | b | c | d | t | h | H |
| M8 | 0.785 | 32.6 | 20 | 6.3 | 16 | 12 | 23 | 39.3 |
| M10 | 1.47 | 41 | 25 | 8 | 20 | 15 | 28 | 48.5 |
| M12 | 2.16 | 50 | 30 | 10 | 25 | 19 | 36 | 61 |
| M16 | 4.41 | 60 | 35 | 12.5 | 30 | 23 | 42 | 72 |
| M20 | 6.18 | 72 | 40 | 16 | 35 | 28 | 50 | 86 |
| M24 | 9.32 | 90 | 50 | 20 | 45 | 38 | 66 | 111 |
| M30 | 14.7 | 110 | 60 | 25 | 60 | 46 | 80 | 135 |
| M36 | 22.6 | 133 | 70 | 31.5 | 70 | 55 | 95 | 161.5 |
FAQ
-
-
What is the difference between JIS 1169 and DIN 582? (JIS nuts usually have larger eyes and different thread depths).
-
Is JIS 1169 suitable for overhead lifting? (Yes, when used within its rated WLL).
-
