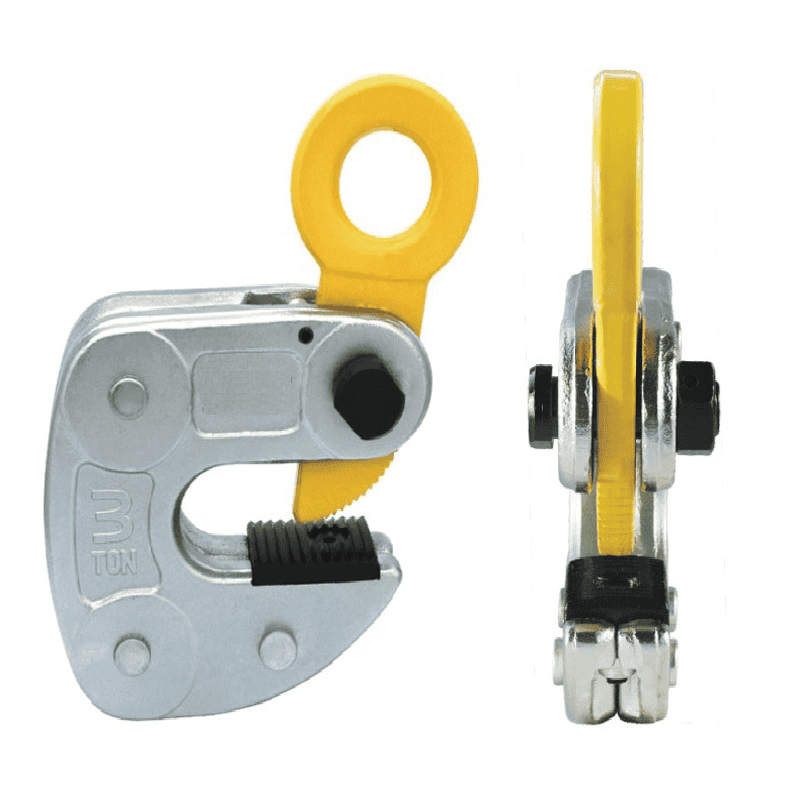

LC Structural Steel Lifting Clamp for Plate and Beam Transport
The LC Steel Plate Lifting Clamp is specially designed for lifting, transporting, and positioning steel plates, section steel, structural beams, and fabricated steel components safely.
With a durable gripping jaw mechanism, the clamp securely grips steel materials during crane lifting operations, improving safety and handling efficiency in industrial environments.
Technical Specifications
| SIZE(T) | JAW OPENING(MM) | LOAD CAPACITY(KG) | A | B | D | E | WEIGHT(KG) |
| 1 | 1-13 | 1000 | 45 | 31 | 108 | 105 | 2 |
| 2 | 3-22 | 2000 | 58 | 42 | 145 | 135 | 4.5 |
| 3 | 12-35 | 3000 | 42 | 52 | 180 | 175 | 8.9 |
Suitable for:
- Steel plates
- H beams
- I beams
- Channel steel
- Angle steel
- Structural steel components
Features
-
Safety & Stability: Equipped with a built-in heavy-duty spring locking device, ensuring the clamp maintains a firm grip on the flange of the I-beam during lifting, effectively eliminating any risk of slippage.
-
Premium Material: The body is drop-forged from high-quality low-carbon alloy steel and undergoes precision heat treatment, delivering superior toughness and high impact resistance.
-
Easy Operation: The lightweight and compact design allows a single operator to complete the hooking and locking process, significantly enhancing onsite operational efficiency.
