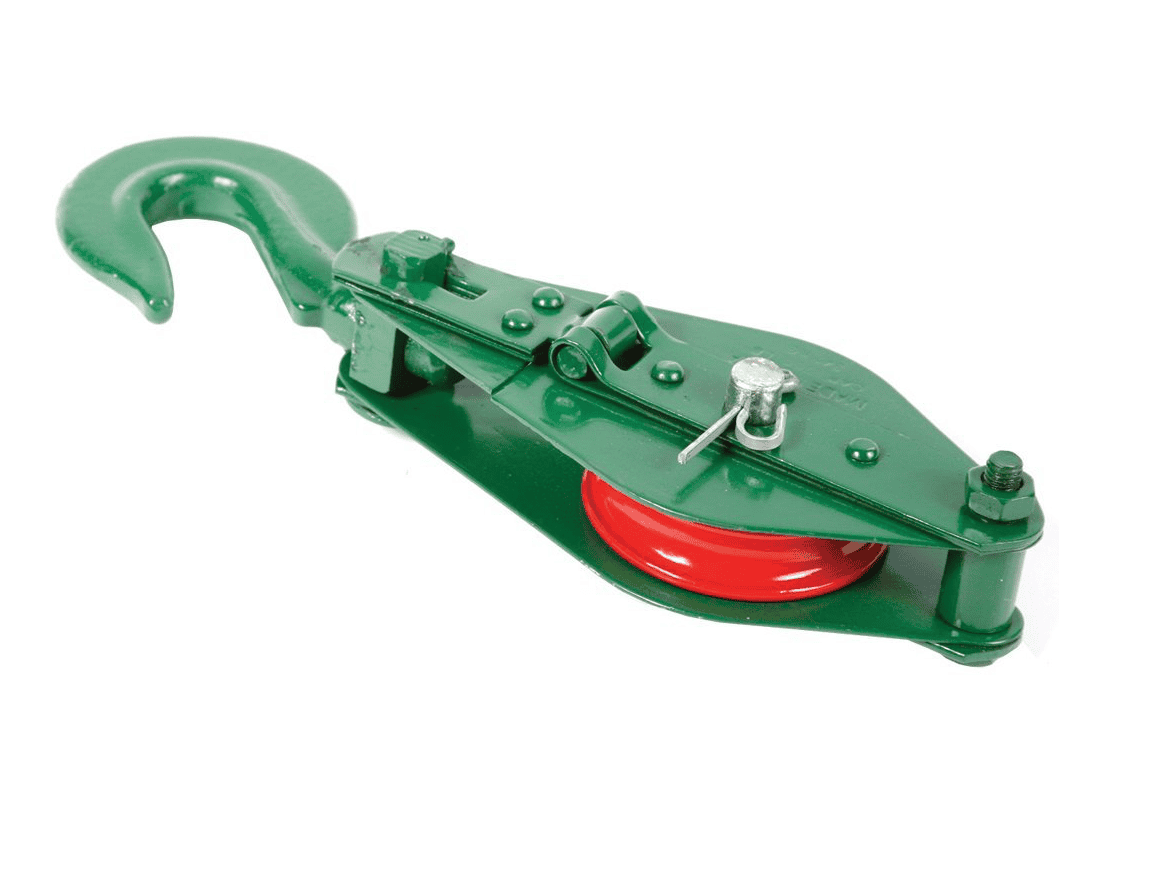

Snatch Block Pulley | Hook Type & Eye Type | For Wire & Synthetic Rope
The Snatch Block is a pulley designed for lifting, pulling, and load redirection. With a side-opening design, it allows quick installation of wire rope without threading, making it ideal for rigging, recovery, and material handling applications.
Available in Hook Type and Eye Type, this snatch block offers flexible connection options for different lifting systems.
Technical Specifications
| TYPE | SWL(T) | SHEAVE DIA(MM) | DIMENSIONS | FOR WIRE ROPE DIA(MM) | N.W(KG) | ||||
| HOOK | EYE | HOOK A1 | EYE A2 | B | C | ||||
| 75X1S | 75X1SO | 0.5 | 75 | 286 | 227 | 87 | 50 | 8 | 1.6 |
| 100X1S | 100X1SO | 1 | 115 | 311.5 | 284.5 | 112 | 55.5 | 10 | 3.5 |
| 125X1S | 125X1SO | 1.5 | 150 | 370 | 344 | 140 | 63.5 | 13 | 4.6 |
| 150X1S | 150X1SO | 2 | 150 | 442.5 | 417 | 168 | 101 | 16 | 7.7 |
| 180X1S | 180X1SO | 3 | 200 | 498 | 478 | 204 | 107 | 19 | 11 |
| 200X1S | 200X1SO | 4 | 200 | 590.5 | 556 | 226 | 128 | 22 | 19.3 |
| 250X1S | 250X1SO | 5 | 250 | 590.5 | 651 | 276 | 147 | 25 | 33.8 |
| 300X1S | 300X1SO | 6 | 250 | 795 | 775 | 330 | 162 | 26 | 48 |
| 350X1S | 350X1SO | 10 | 300 | 934 | 898 | 395 | 178 | 28 | 66 |
Key Features
Easy & Fast Operation
- Side opening plate for quick rope installation
- No need to disassemble the wire rope
- Saves time and improves efficiency
Two Connection Types
- Hook Type: Easy and quick attachment
- Eye Type: Secure connection with shackle or sling
Efficient Load Handling
- Reduces pulling force
- Changes pulling direction easily
- Improves mechanical advantage
